UV-Resistant ABS Pellets DGK-ABS R165UV
Weatherable ABS for outdoor molded parts needing UV resistance and color stability
UV-resistant ABS; weather-resistant, low-temperature resistant and anti-aging, with reference UV resistance of 5-10 years.
UV-resistant ABS compound DGK-ABS R165UV for appliance housings, outdoor electrical boxes, automotive exterior trim, exposed covers, weatherable molded parts and plastic components needing color stability. DEYU supports custom formulas, sample validation, bulk purchase and wholesale procurement.
Important parameters
- Base resin
- ABS
- Model
- DGK-ABS R165UV
- Color
- Custom color matching supported
- Processing
- Injection molding. Injection molding, extrusion or other processes according to the formula.
- Key performance
- UV-resistant ABS; weather-resistant, low-temperature resistant and anti-aging, with reference UV resistance of 5-10 years.
- Status

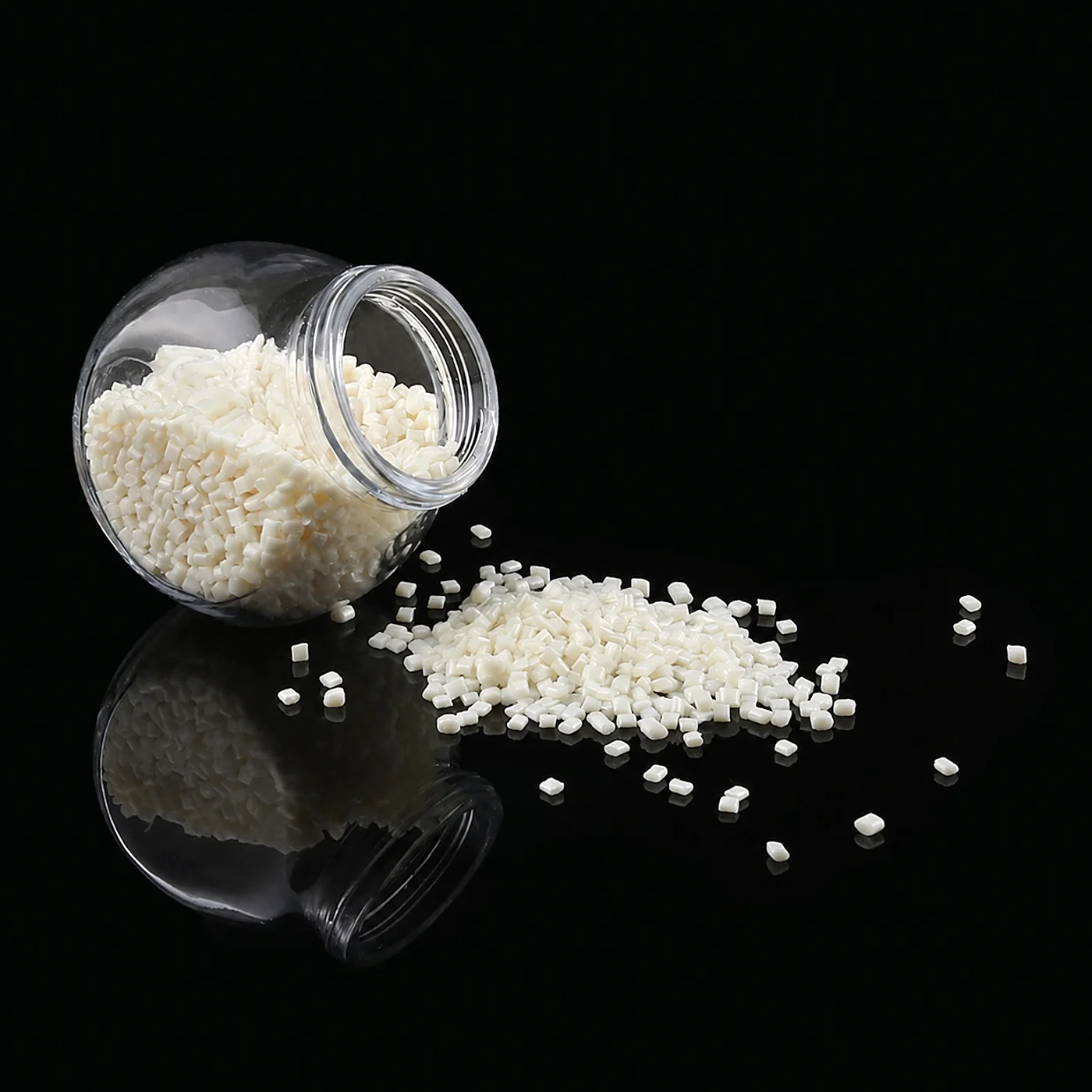

- Pellet compound
FAQ
Can this material be color matched?
Yes. DEYU can match black, natural, white or custom colors according to the base resin, filler system and target appearance.
Can the key performance be customized?
Yes. DEYU can adjust strength, flow, color, filler system and special properties according to the part drawing and test conditions.
Can international orders receive certification documents?
Yes. DEYU can provide material data sheets and common export documents, and can coordinate RoHS, REACH, UL-related or other third-party testing according to the order requirement.
How can I get a sample of DGK-ABS R165UV or a similar material?
Submit the target resin, color, process and performance range. DEYU will suggest a sample grade or prepare a trial formula for sample validation. Request sample

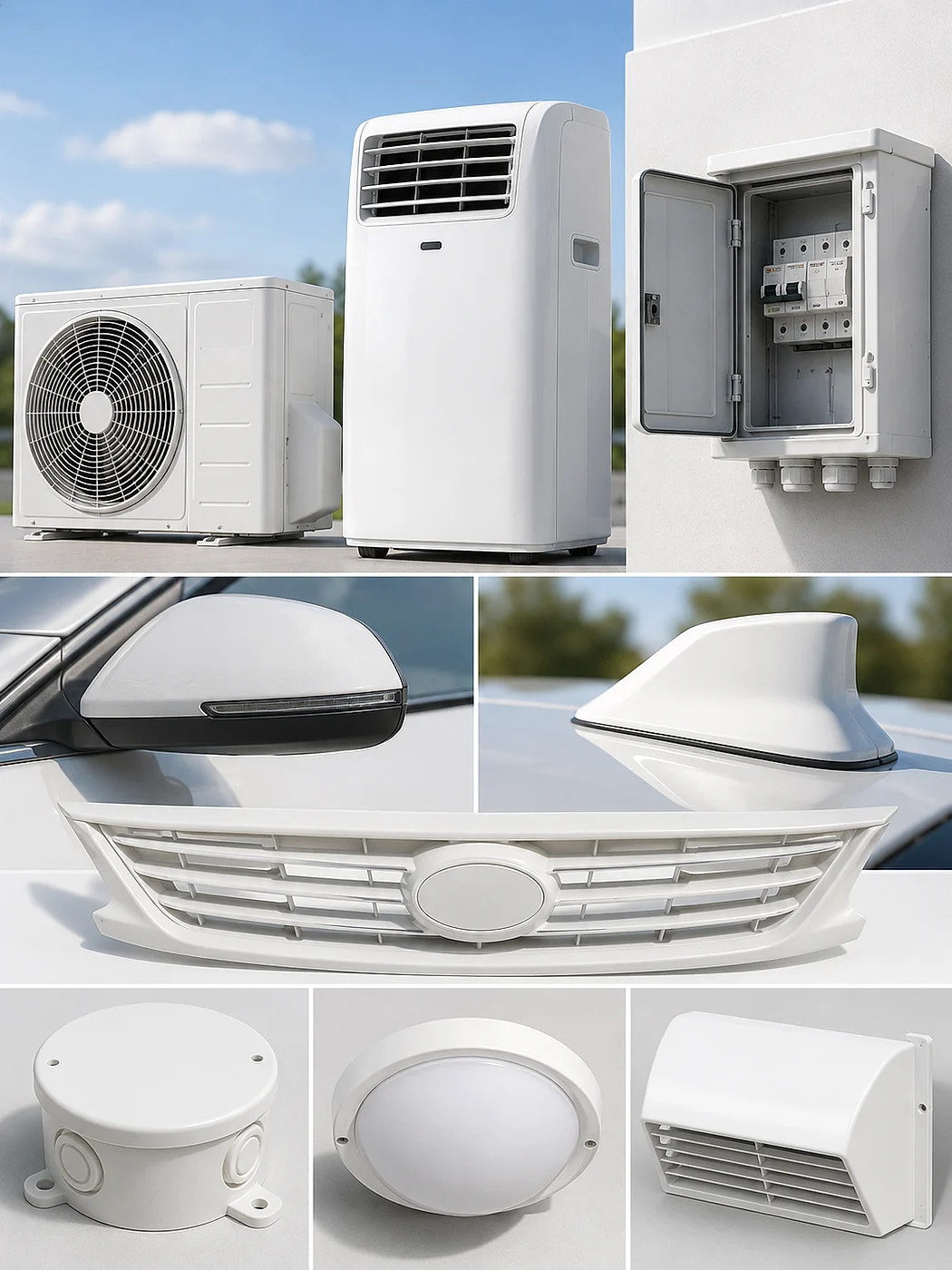

Application areas
| Application area | Typical parts |
|---|---|
| Application area 1 | outdoor housings |
| Application area 2 | exposed brackets |
| Application area 3 | automotive trim clips |
| Application area 4 | appliance exterior covers |
| Application area 5 | garden equipment shells |
| Application area 6 | sensor covers |
Reference quote
- Minimum price
- USD 5.9/kg
- Maximum price
- USD 10.8/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, performance or certification requirements require custom production.
Final quotation depends on the specific formula, color, order volume and testing requirements.

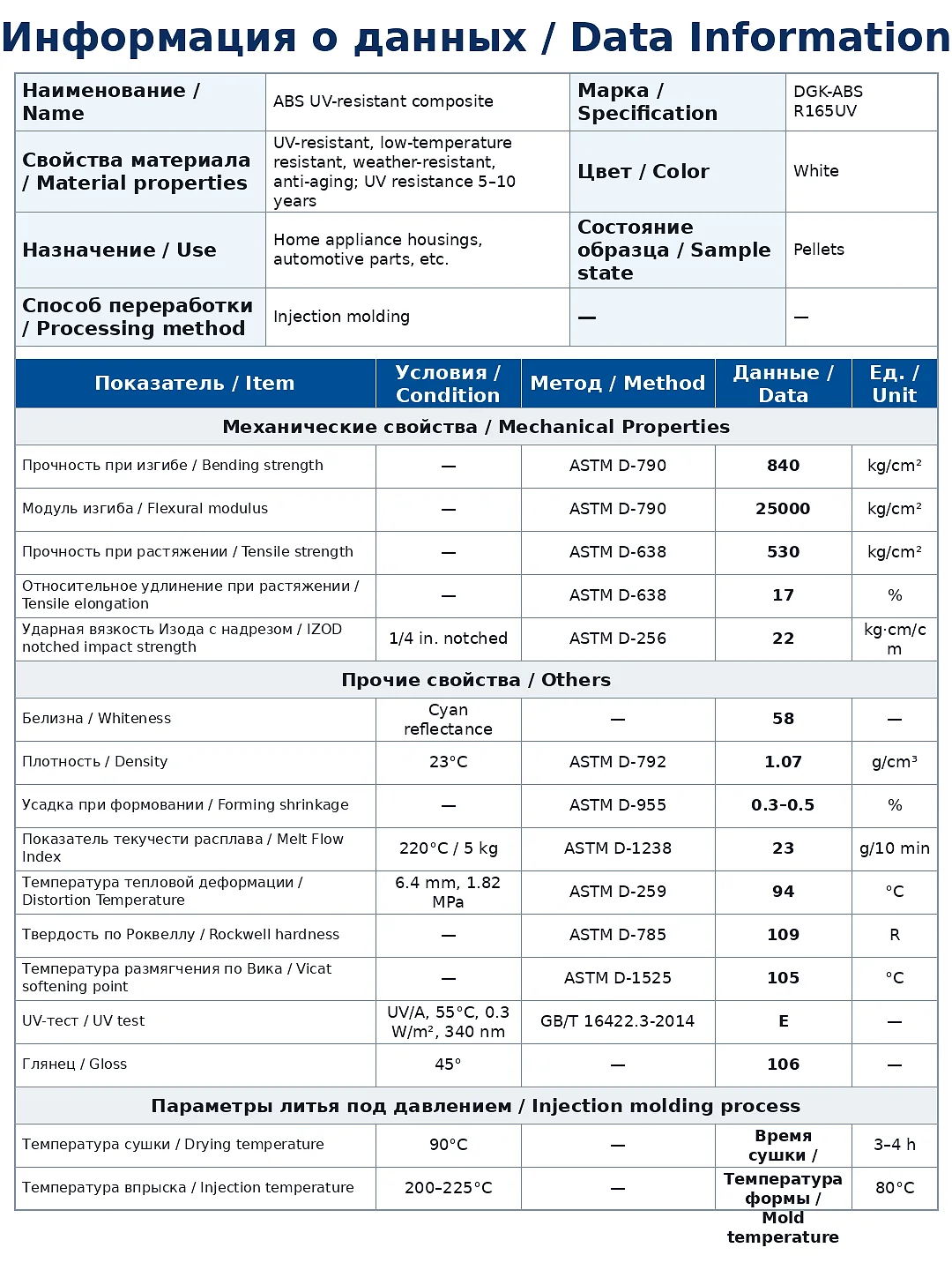

Data sheet
Physical Property Data Sheet
| Name | ABS UV-resistant composite | Specification | DGK-ABS R165UV |
|---|---|---|---|
| Material properties | UV-resistant, low-temperature resistant, weather-resistant, anti-aging | Color | White |
| Use | Home appliance housings, automotive parts, etc. | Sample state | Pellets |
| Processing method | Injection molding | - | / |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Mechanical Properties | ||||
| Tensile strength | / | ASTM D-638 | 50 | kg/cm2 |
| Elongation at break | / | ASTM D-638 | 17 | % |
| Izod notched impact strength | 1/4 in. notched | ASTM D-256 | 2 | kg-cm/cm |
| Others | ||||
| Whiteness | / | / | 58 | / |
| Reflectance | / | ASTM D-792 | 1.07 | g/cm3 |
| Forming shrinkage | / | ASTM D-955 | 0.3-0.5 | % |
| Melt Flow Index | 220℃ / 5 kg | ASTM D-1238 | 23 | g/10 min |
| Heat distortion temperature | 6.4 mm, 1.82 MPa | ASTM D-648 | 90 | ℃ |
| Vicat softening point | / | ASTM D-1525 | 109 | ℃ |
| UV test | UV/A, 55℃, 0.3 W/m2, 240 h | GB/T 16422.3-2014 | DE >=6 | / |
| Injection molding process | ||||
| Drying temperature | 80℃ | Drying time | 3-4 h | |
| Injection temperature | 200-225℃ | Mold temperature | 80℃ | |
