Flame-Retardant UV-Resistant ASA Pellets DGK-ASA FR801UV
ASA combining flame retardancy and UV resistance for outdoor molded products

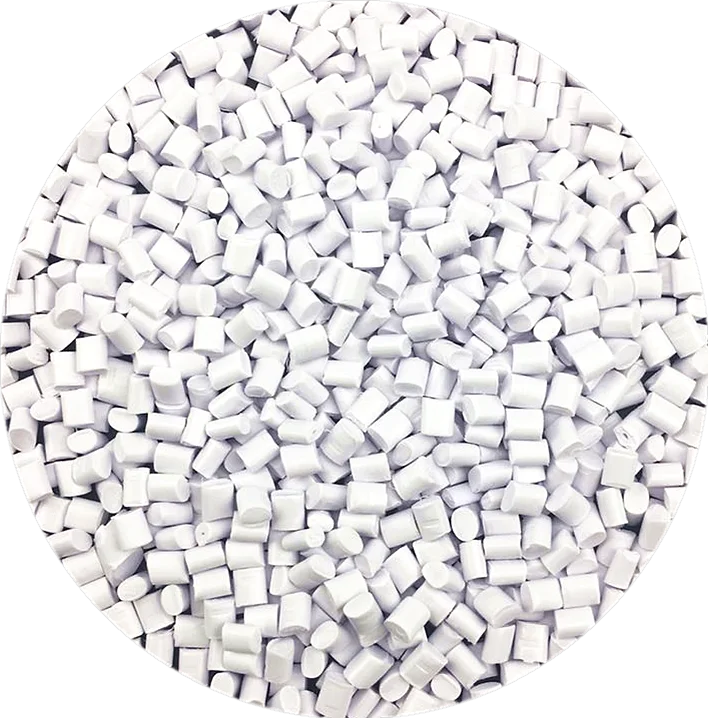

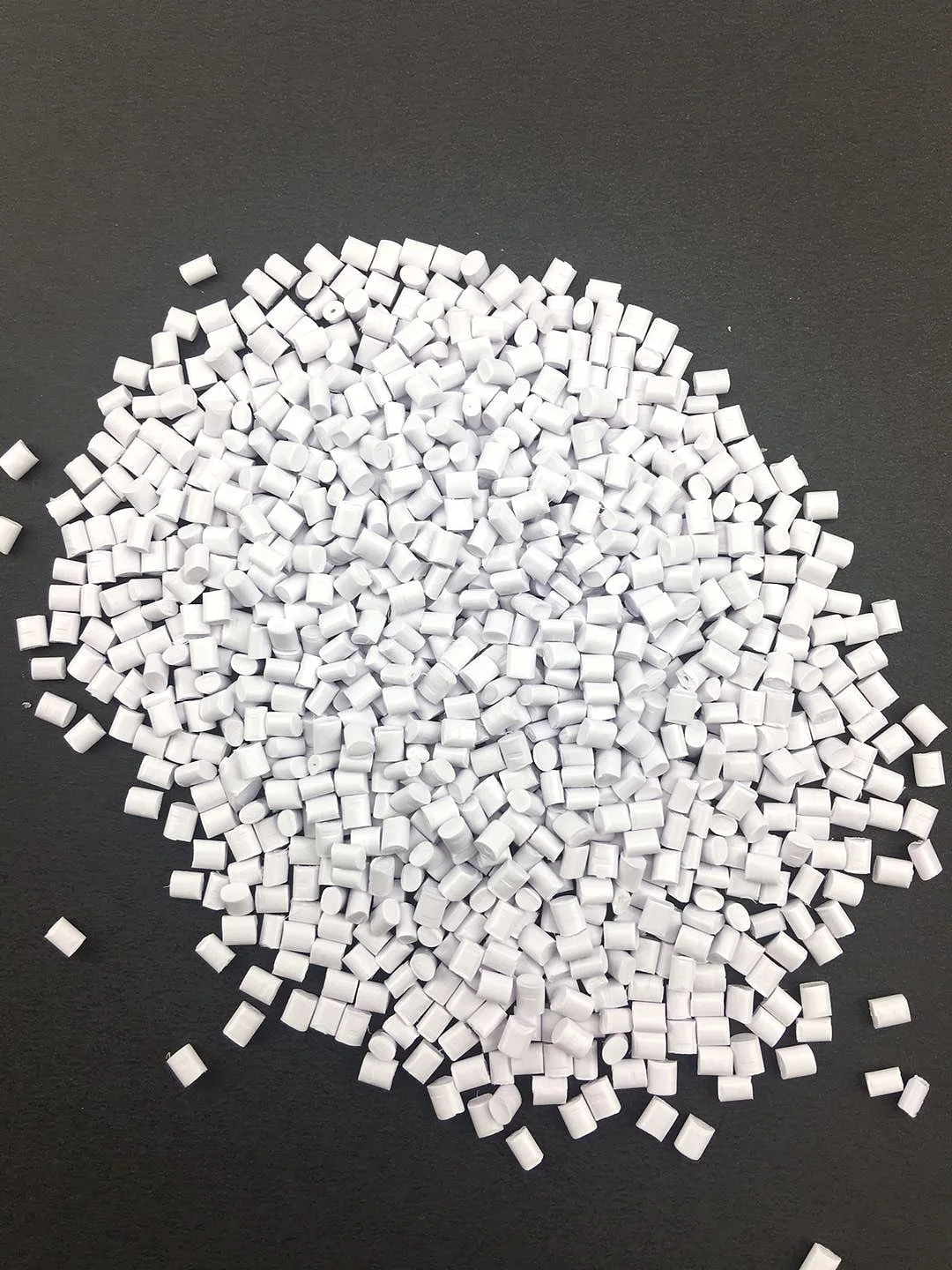

Flame-retardant and UV-resistant ASA; ceramic white sample with weather resistance and custom color matching support.
Flame-retardant UV-resistant ASA compound DGK-ASA FR801UV for outdoor housings, satellite antenna parts, control boxes, battery housings, electrical covers and weatherable molded products requiring flame resistance. DEYU supports custom formulas, sample validation, bulk purchase and wholesale procurement.
Important parameters
- Base resin
- ASA
- Model
- DGK-ASA FR801UV
- Color
- Custom color matching supported
- Processing
- Injection molding. Injection molding, extrusion or other processes according to the formula.
- Key performance
- Flame-retardant and UV-resistant ASA; ceramic white sample with weather resistance and custom color matching support.
- Status
- Pellet compound
FAQ
Can this material be color matched?
Yes. DEYU can match black, natural, white or custom colors according to the base resin, filler system and target appearance.
Can flame retardancy be customized for a specific wall thickness?
Yes. The formula can be adjusted around UL94 level, wall thickness, color and impact requirement.
Can international orders receive certification documents?
Yes. DEYU can provide material data sheets and common export documents, and can coordinate RoHS, REACH, UL-related or other third-party testing according to the order requirement.
How can I get a sample of DGK-ASA FR801UV or a similar material?
Submit the target resin, color, process and performance range. DEYU will suggest a sample grade or prepare a trial formula for sample validation. Request sample
Application areas
| Application area | Typical parts |
|---|---|
| Application area 1 | electrical housings |
| Application area 2 | terminal blocks |
| Application area 3 | switch boxes |
| Application area 4 | charger shells |
| Application area 5 | wire harness clips |
| Application area 6 | control module covers |
Reference quote
- Minimum price
- USD 5.9/kg
- Maximum price
- USD 10.8/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, performance or certification requirements require custom production.
Final quotation depends on the specific formula, color, order volume and testing requirements.
Data sheet

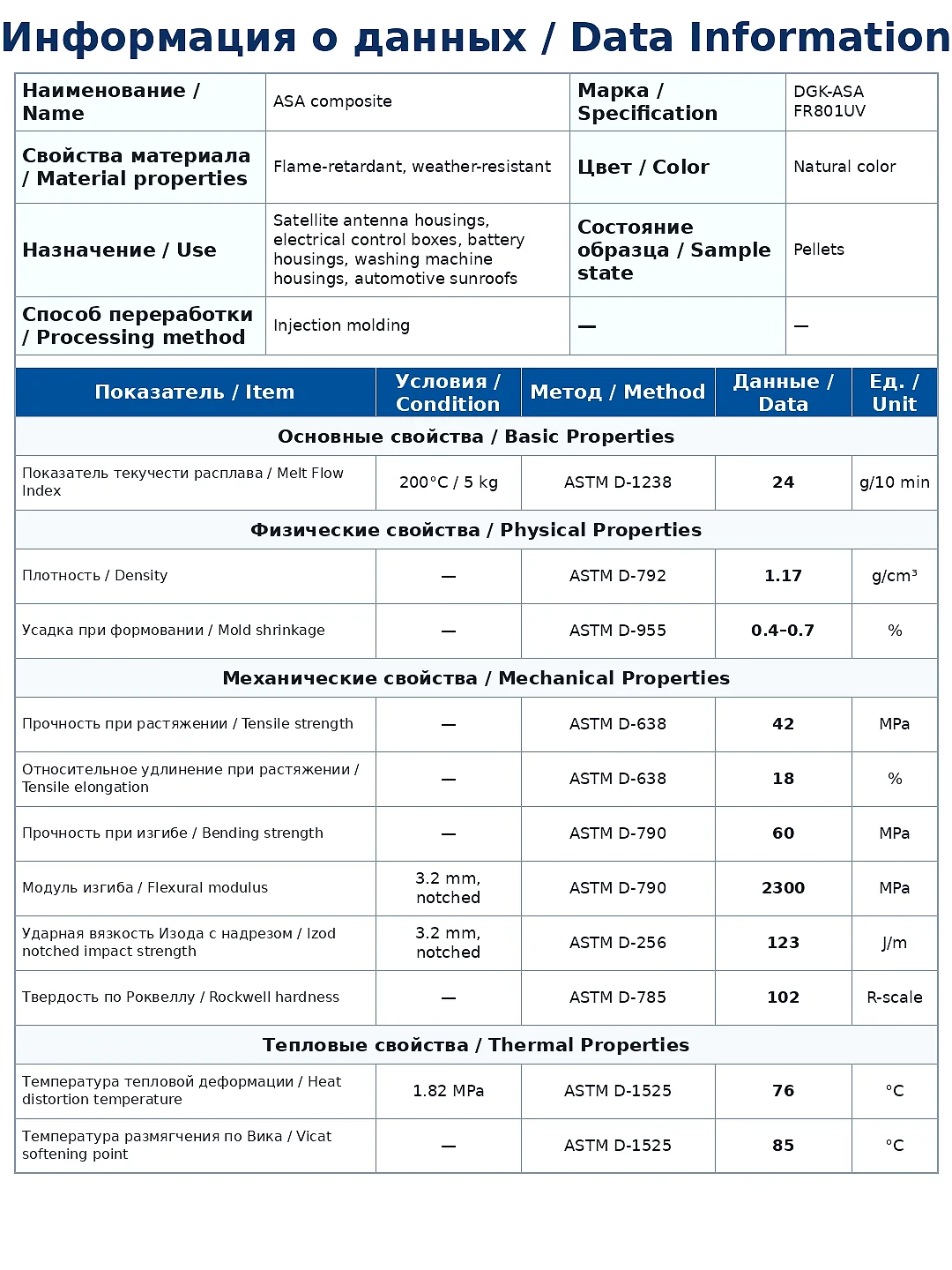

Physical Property Data Sheet
| Name | ASA composite | Specification | DGK-ASA FR801UV |
|---|---|---|---|
| Material properties | Flame-retardant, weather-resistant | Color | Natural color |
| Use | Satellite antenna housings, electrical control boxes, battery housings, washing machine housings, automotive sunroofs | Sample state | Pellets |
| Processing method | Injection molding | - | / |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Basic Properties | ||||
| Melt Flow Index | 200℃ / 5 kg | ASTM D-1238 | 24 | g/10 min |
| Physical Properties | ||||
| Density | / | ASTM D-792 | 1.17 | g/cm3 |
| Mold shrinkage | / | ASTM D-955 | 0.4-0.7 | % |
| Mechanical Properties | ||||
| Tensile strength | / | ASTM D-638 | 42 | MPa |
| Tensile elongation | / | ASTM D-638 | 18 | % |
| Bending strength | / | ASTM D-790 | 60 | MPa |
| Flexural modulus | 3.2 mm, unnotched | ASTM D-790 | 2300 | MPa |
| Izod notched impact strength | 3.2 mm, notched | ASTM D-256 | 123 | J/m |
| Rockwell hardness | / | ASTM D-785 | 102 | R-scale |
| Thermal Properties | ||||
| Heat distortion temperature | 1.82 MPa | ASTM D-255 | 76 | ℃ |
| Vicat softening point | / | ASTM D-1525 | 85 | ℃ |
