MoS2 Wear-Resistant PA6 Pellets DGK-PA6 G25MS
PA6 with MoS2 for wear-resistant, low-friction sliding components
MoS2 reinforced PA6; high wear resistance and self-lubricating performance for sliding and rotating parts.
MoS2 filled wear-resistant PA6 compound DGK-PA6 G25MS for bushings, gears, sliding parts, automotive components, mechanical supports and low-friction molded parts requiring durability under movement. DEYU supports custom formulas, sample validation, bulk purchase and wholesale procurement.
Important parameters
- Base resin
- PA6
- Model
- DGK-PA6 G25MS
- Color
- Custom color matching supported
- Processing
- Injection molding. Injection molding, extrusion or other processes according to the formula.
- Key performance
- MoS2 reinforced PA6; high wear resistance and self-lubricating performance for sliding and rotating parts.
- Status
- Pellet compound
FAQ
Can this material be color matched?
Yes. DEYU can match black, natural, white or custom colors according to the base resin, filler system and target appearance.
Can wear resistance and friction be customized?
Yes. PTFE, MoS2, aramid or other wear additives can be adjusted according to the mating material, load and movement speed.
Can international orders receive certification documents?
Yes. DEYU can provide material data sheets and common export documents, and can coordinate RoHS, REACH, UL-related or other third-party testing according to the order requirement.
How can I get a sample of DGK-PA6 G25MS or a similar material?
Submit the target resin, color, process and performance range. DEYU will suggest a sample grade or prepare a trial formula for sample validation. Request sample

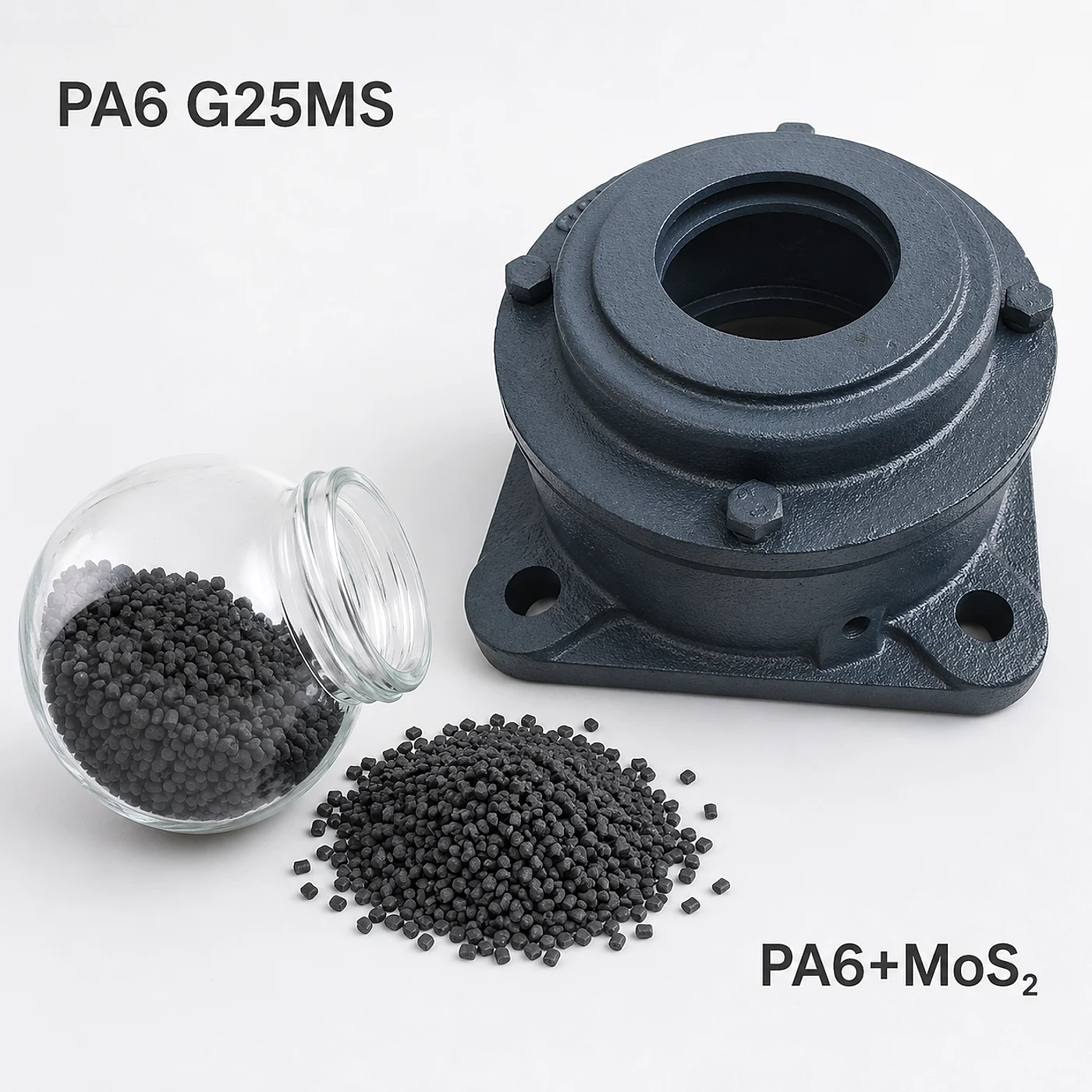

Application areas
| Application area | Typical parts |
|---|---|
| Application area 1 | chair castors |
| Application area 2 | gears |
| Application area 3 | guide sliders |
| Application area 4 | bushings |
| Application area 5 | rollers |
| Application area 6 | textile machine sliding parts |
Reference quote
- Minimum price
- USD 5.9/kg
- Maximum price
- USD 10.8/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, performance or certification requirements require custom production.
Final quotation depends on the specific formula, color, order volume and testing requirements.

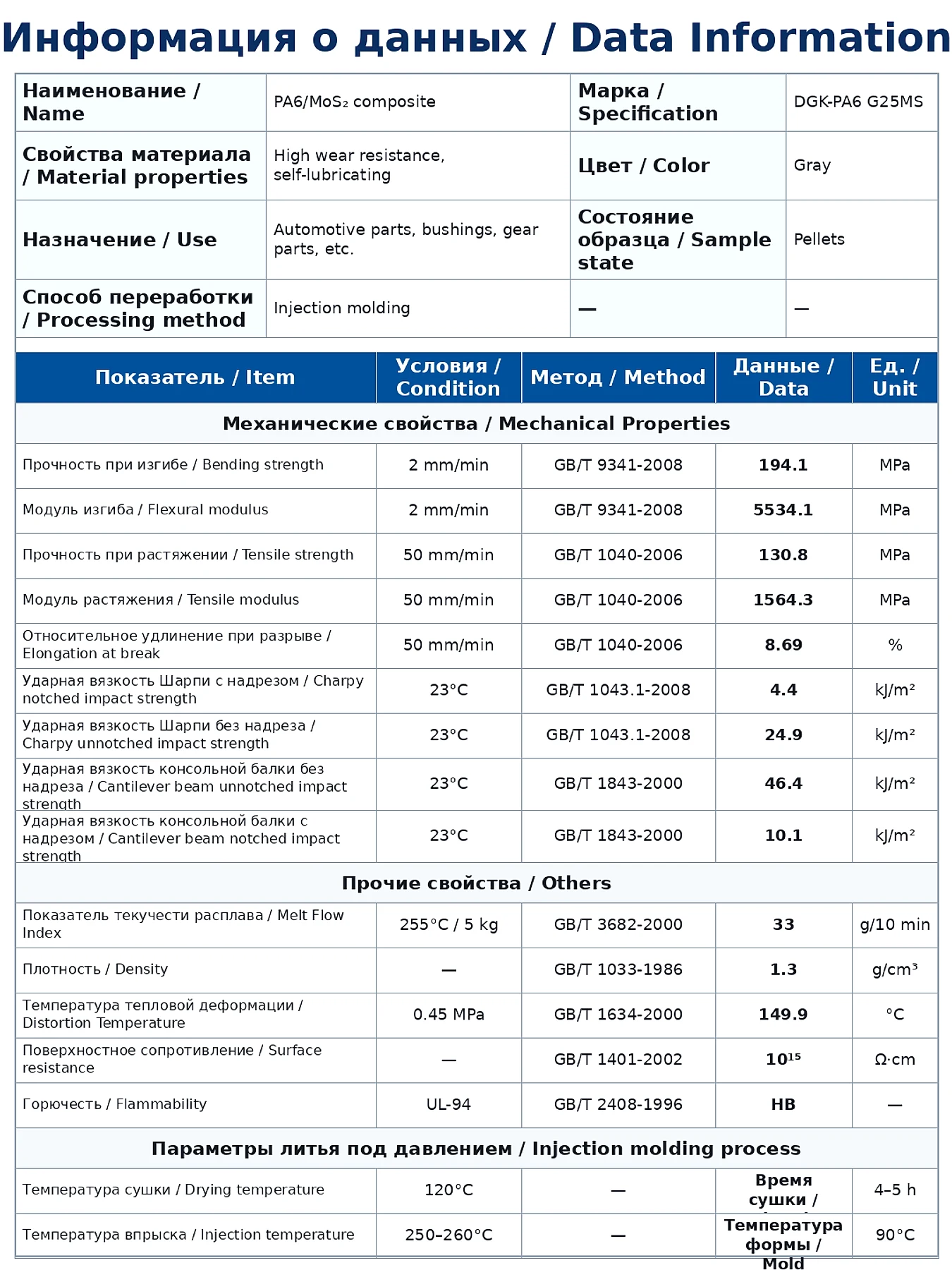

Data sheet
Physical Property Data Sheet
| Name | PA6/MoS2 composite | Specification | DGK-PA6 G25MS |
|---|---|---|---|
| Material properties | High wear resistance, self-lubricating | Color | Gray |
| Use | Automotive parts, bushings, gear parts, etc. | Sample state | Pellets |
| Processing method | Injection molding | - | / |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Mechanical Properties | ||||
| Bending strength | 2 mm/min | GB/T 9341-2008 | 138 | MPa |
| Flexural modulus | 2 mm/min | GB/T 9341-2008 | 5534.1 | MPa |
| Tensile strength | 50 mm/min | GB/T 1040-2006 | 130.8 | MPa |
| Tensile modulus | 50 mm/min | GB/T 1040-2006 | 1564.3 | MPa |
| Elongation at break | 50 mm/min | GB/T 1040-2006 | 6.69 | % |
| Charpy notched impact strength | 23℃ | GB/T 1043.1-2008 | 8.4 | kJ/m2 |
| Charpy unnotched impact strength | 23℃ | GB/T 1043.1-2008 | 24.9 | kJ/m2 |
| Cantilever beam unnotched impact strength | 23℃ | GB/T 1843-2000 | 40.4 | kJ/m2 |
| Cantilever beam notched impact strength | 23℃ | GB/T 1843-2000 | 10.1 | kJ/m2 |
| Others | ||||
| Melt Flow Index | 255℃ / 5 kg | GB/T 3682-2000 | 8.8 | g/10 min |
| Density | / | GB/T 1033-1986 | 1.3 | g/cm3 |
| Heat distortion temperature | 0.45 MPa | GB/T 1634-2000 | 145 | ℃ |
| Surface resistance | / | GB/T 1401-2002 | 10^8 | ohm-cm |
| Flammability | UL-94 | GB/T 2408-1996 | HB | / |
| Injection molding process | ||||
| Drying temperature | 120℃ | Drying time | 4-5 h | |
| Injection temperature | 250-260℃ | Mold temperature | 90℃ | |
