Wood Fiber PA6 Composite Pellets DGK-PA6 PA28 335M
Bio-based PA6 compound with wood-fiber texture, high hardness and wear resistance
Bio-based PA6 compound with wood-fiber texture, high hardness, heat resistance, wear resistance and slight wood aroma.

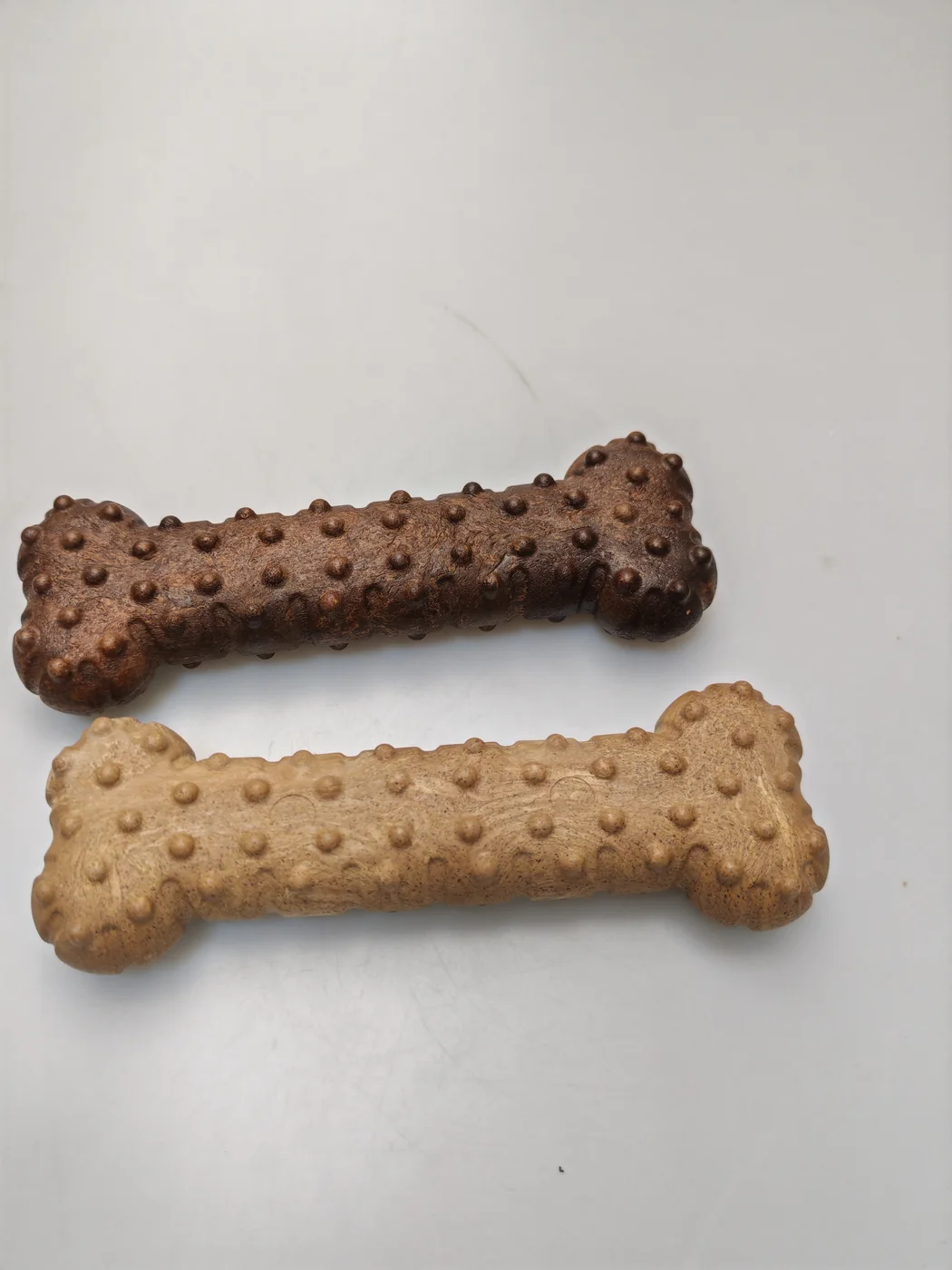

Wood fiber PA6 composite DGK-PA6 PA28 335M with high hardness, heat resistance, wear resistance and wood-like texture for bio-based molded parts, pet products, durable consumer goods and structural appearance parts. DEYU supports custom formulas, sample validation, bulk purchase and wholesale procurement.
Important parameters
- Base resin
- PA6
- Model
- DGK-PA6 PA28 335M
- Color
- Custom color matching supported
- Processing
- Injection molding. Injection molding, extrusion or other processes according to the formula.
- Key performance
- Bio-based PA6 compound with wood-fiber texture, high hardness, heat resistance, wear resistance and slight wood aroma.
- Status
- Pellet compound
FAQ
Can this material be color matched?
Yes. DEYU can match black, natural, white or custom colors according to the base resin, filler system and target appearance.
Can wear resistance and friction be customized?
Yes. PTFE, MoS2, aramid or other wear additives can be adjusted according to the mating material, load and movement speed.
Can international orders receive certification documents?
Yes. DEYU can provide material data sheets and common export documents, and can coordinate RoHS, REACH, UL-related or other third-party testing according to the order requirement.
How can I get a sample of DGK-PA6 PA28 335M or a similar material?
Submit the target resin, color, process and performance range. DEYU will suggest a sample grade or prepare a trial formula for sample validation. Request sample
Application areas
| Application area | Typical parts |
|---|---|
| Application area 1 | chair castors |
| Application area 2 | gears |
| Application area 3 | guide sliders |
| Application area 4 | bushings |
| Application area 5 | rollers |
| Application area 6 | textile machine sliding parts |
Reference quote
- Minimum price
- USD 5.9/kg
- Maximum price
- USD 10.8/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, performance or certification requirements require custom production.
Final quotation depends on the specific formula, color, order volume and testing requirements.

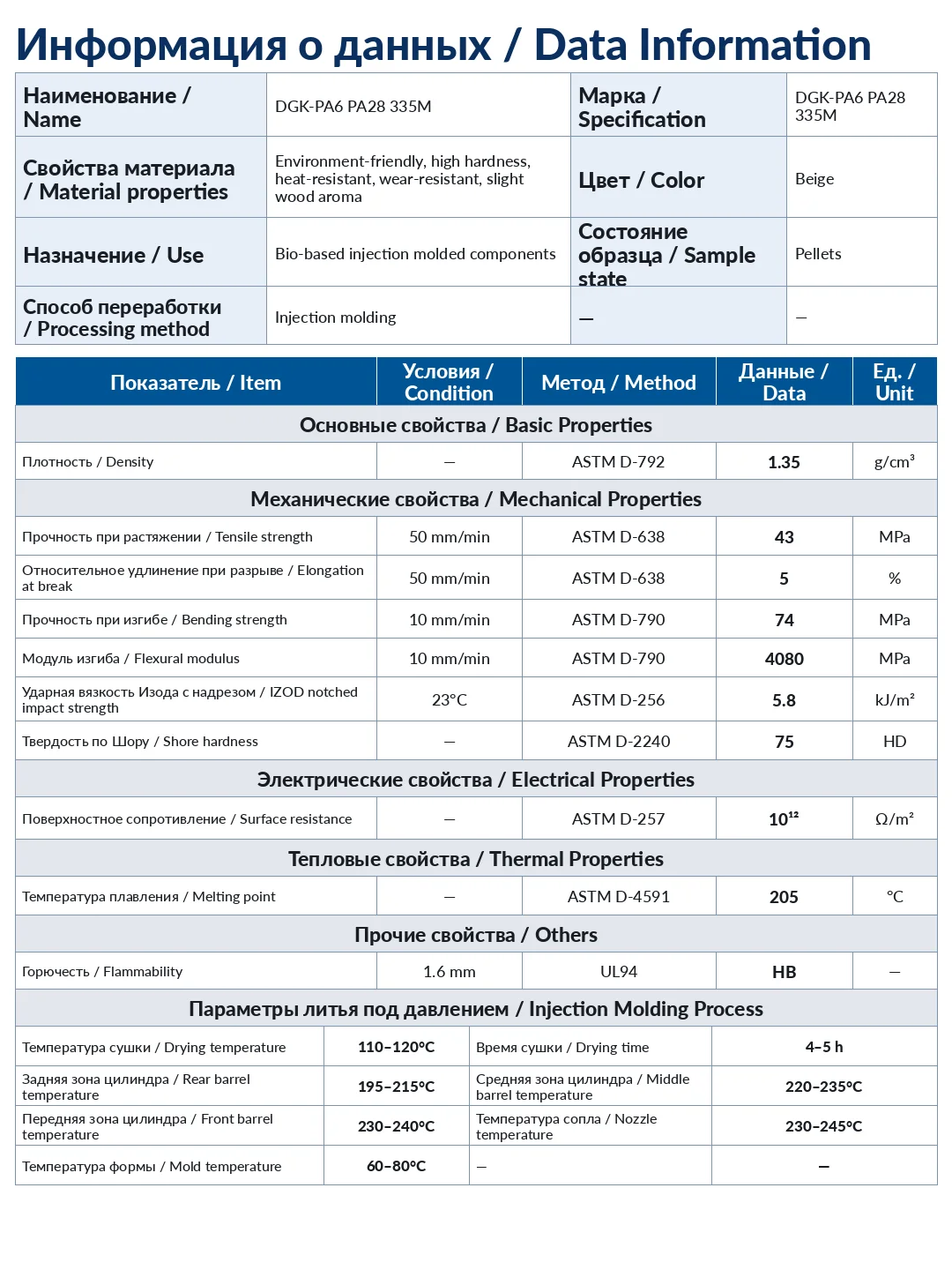

Data sheet
Physical Property Data Sheet
| Name | DGK-PA6 PA28 335M | Specification | DGK-PA6 PA28 335M |
|---|---|---|---|
| Material properties | Environment-friendly, high hardness, heat-resistant, wear-resistant | Color | Beige |
| Use | Bio-based injection molded components | Sample state | Pellets |
| Processing method | Injection molding | - | / |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Basic Properties | ||||
| Density | / | ASTM D-792 | 1.35 | g/cm3 |
| Melt Flow Index | / | / | / | g/10 min |
| Mechanical Properties | ||||
| Tensile strength | 50 mm/min | ASTM D-638 | 43 | MPa |
| Elongation at break | 50 mm/min | ASTM D-638 | 5 | % |
| Bending strength | 10 mm/min | ASTM D-790 | 74 | MPa |
| Flexural modulus | 10 mm/min | ASTM D-790 | 4080 | MPa |
| Izod notched impact strength | 23℃ | ASTM D-256 | 5.8 | kJ/m2 |
| Izod unnotched impact strength | 23℃ | ASTM D-256 | 75 | HD |
| Electrical Properties | ||||
| Surface resistance | / | ASTM D-257 | 10^9 | ohm-cm |
| Thermal Properties | ||||
| Melting point | / | ASTM D-789 | 205 | ℃ |
| Others | ||||
| Limited oxygen index | / | / | / | % |
| Flammability | UL-94 | / | HB | / |
| Injection molding process | ||||
| Drying temperature | 110-130℃ | Drying time | 4-5 h | |
| Injection temperature | 195-235℃ | Mold temperature | 80-90℃ | |
