PC/ABS Alloy Pellets DGK-PC/ABS T85
PC/ABS alloy with dimensional stability for housings and appearance parts
PC/ABS alloy with good dimensional accuracy, easy processing, high rigidity and a high-gloss DEYU finish.
PC/ABS alloy compound DGK-PC/ABS T85 with dimensional stability and easy processing for automotive interiors, electronic housings, appliance shells, printer parts, control panels and molded appearance components. DEYU supports custom formulas, sample validation, bulk purchase and wholesale procurement.
Important parameters
- Base resin
- PC/ABS
- Model
- DGK-PC/ABS T85
- Color
- Custom color matching supported
- Processing
- Injection molding. Injection molding, extrusion or other processes according to the formula.
- Key performance
- PC/ABS alloy with good dimensional accuracy, easy processing, high rigidity and a high-gloss DEYU finish.
- Status
- Pellet compound
FAQ
Can this material be color matched?
Yes. DEYU can match black, natural, white or custom colors according to the base resin, filler system and target appearance.
Can the key performance be customized?
Yes. DEYU can adjust strength, flow, color, filler system and special properties according to the part drawing and test conditions.
Can international orders receive certification documents?
Yes. DEYU can provide material data sheets and common export documents, and can coordinate RoHS, REACH, UL-related or other third-party testing according to the order requirement.
How can I get a sample of DGK-PC/ABS T85 or a similar material?
Submit the target resin, color, process and performance range. DEYU will suggest a sample grade or prepare a trial formula for sample validation. Request sample
Application areas
| Application area | Typical parts |
|---|---|
| Application area 1 | custom molded housings |
| Application area 2 | industrial fittings |
| Application area 3 | appliance parts |
| Application area 4 | technical clips |
| Application area 5 | functional plastic components |
| Application area 6 | extruded or molded profiles |
Reference quote
- Minimum price
- USD 5.9/kg
- Maximum price
- USD 10.8/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, performance or certification requirements require custom production.
Final quotation depends on the specific formula, color, order volume and testing requirements.
Data sheet

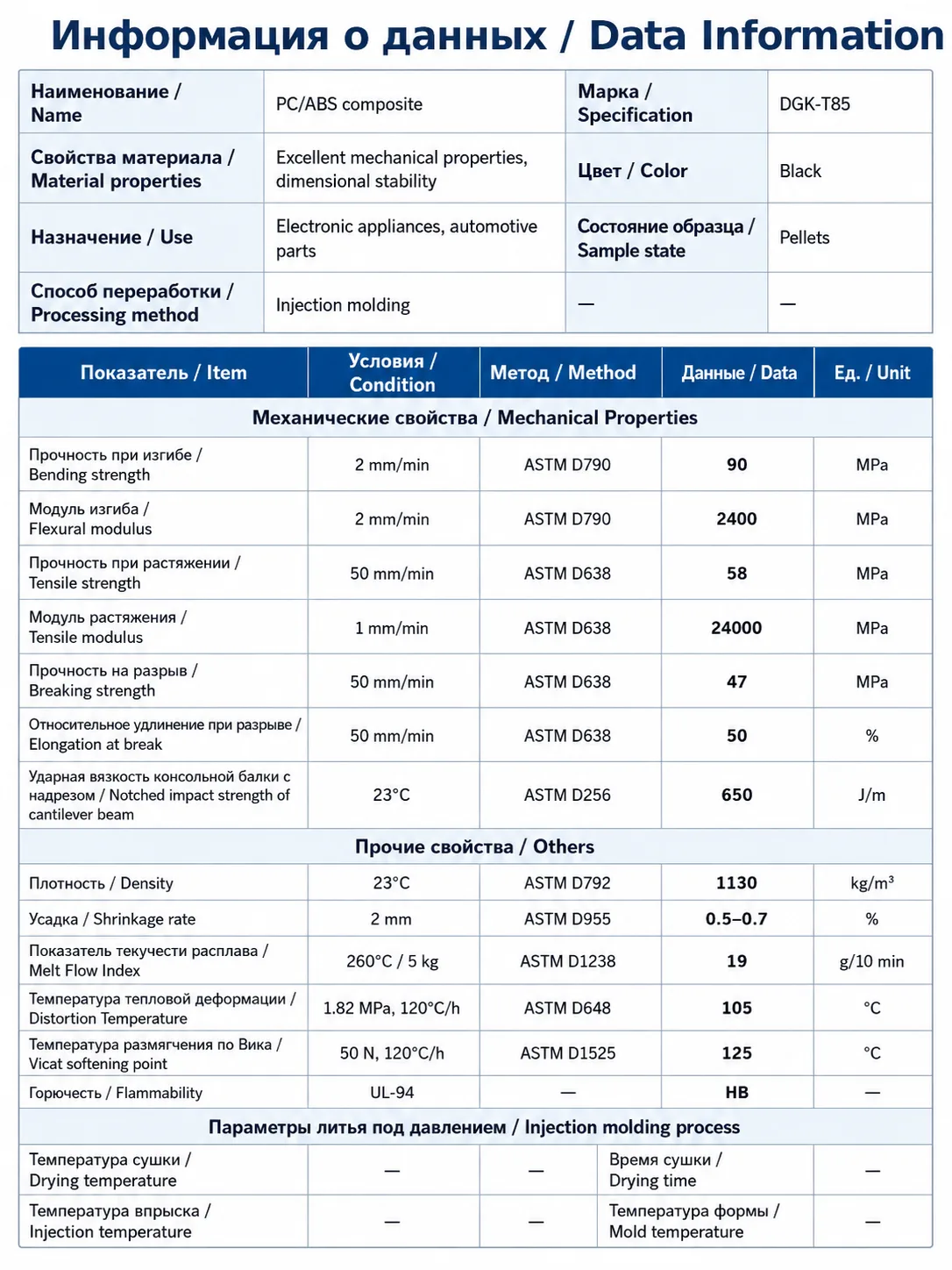

Physical Property Data Sheet
| Name | PC/ABS composite | Specification | DGK-T85 |
|---|---|---|---|
| Material properties | Excellent mechanical properties, dimensional stability | Color | Black |
| Use | Electronic appliances, automotive parts | Sample state | Pellets |
| Processing method | Injection molding | - | / |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Mechanical Properties | ||||
| Bending strength | 2 mm/min | ASTM D790 | 90 | MPa |
| Flexural modulus | 2 mm/min | ASTM D790 | 2400 | MPa |
| Tensile strength | 50 mm/min | ASTM D638 | 58 | MPa |
| Tensile modulus | 1 mm/min | ASTM D638 | 24000 | MPa |
| Yield strength | 50 mm/min | ASTM D638 | 47 | MPa |
| Elongation at break | 50 mm/min | ASTM D638 | 50 | % |
| Notched impact strength of cantilever beam | 23℃ | ASTM D256 | 650 | J/m |
| Others | ||||
| Density | 23℃ | ASTM D792 | 1130 | kg/m3 |
| Shrinkage rate | 2 mm | ASTM D955 | 0.5-0.7 | % |
| Melt Flow Index | 260℃ / 5 kg | ASTM D1238 | 19 | g/10 min |
| Heat distortion temperature | 1.82 MPa, 120℃/h | ASTM D648 | 105 | ℃ |
| Vicat softening point | 50 N, 120℃/h | ASTM D1525 | 125 | ℃ |
| Flammability | UL-94 | / | HB | / |
| Injection molding process | ||||
| Drying temperature | / | Drying time | / | |
| Injection temperature | / | Mold temperature | / | |
