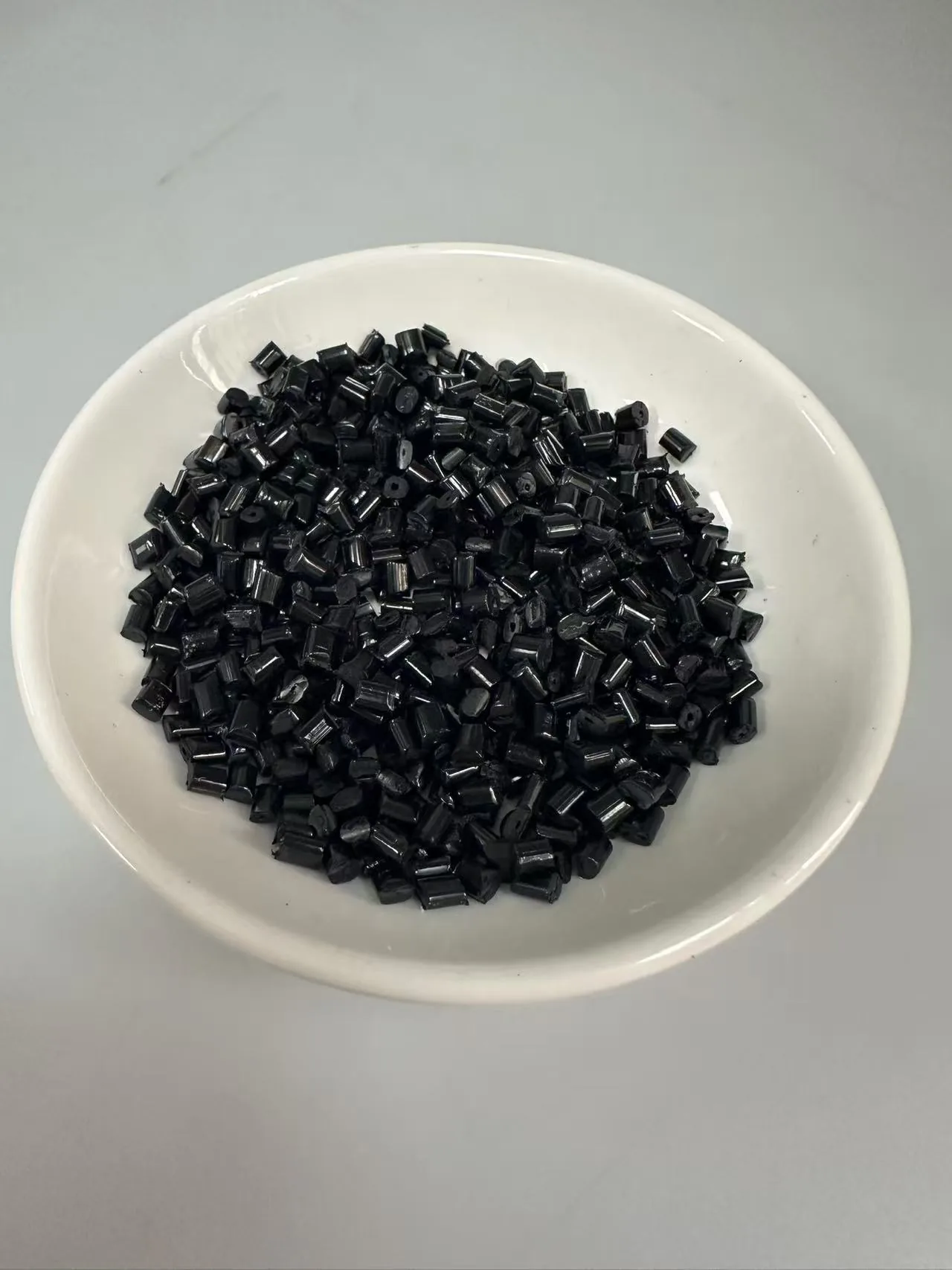

Conductive Extrusion PC Pellets DGK-PC DD5-7JC
Extrusion-grade conductive polycarbonate with 10^5-10^7 ohm resistance
Conductive 10^5-10^7 ohm PC, smooth no-pitting extrusion surface, matte or high-gloss finish available.
DGK-PC DD5-7JC is a weakly conductive and anti-static PC compound for extrusion and molding. It is suited to electronic trays, chip carrier tape, IC packaging reels, ESD blister trays and precision packaging components where stable resistance and clean surface appearance matter.
Important parameters
- Base resin
- PC
- Model
- DGK-PC DD5-7JC
- Color
- Black; matte or high-gloss finish can be customized
- Processing
- Extrusion / injection molding
- Key performance
- Weakly conductive and anti-static PC; 10^5-10^7 ohm; smooth no-pitting surface.
- Status
- Pellet compound
FAQ
Can matte and high-gloss surfaces both be customized?
Yes. DEYU can tune the filler system, extrusion conditions and surface additives to target matte, semi-gloss or high-gloss appearance.
What is the target resistance range?
The standard target is 10^5-10^7 ohm. The range can be adjusted according to wall thickness, carrier tape geometry and ESD control requirement.

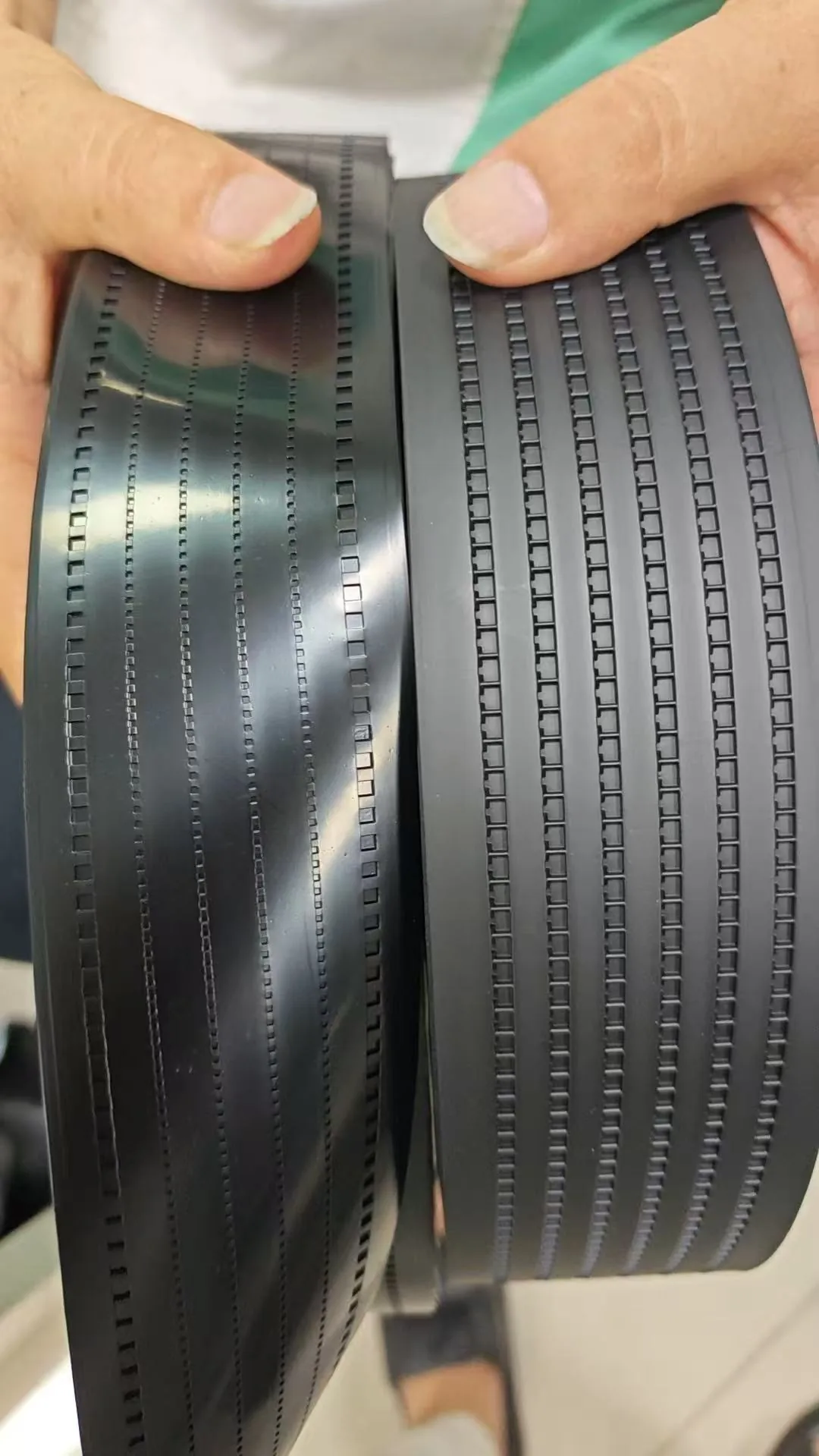

Is it suitable for chip carrier tape?
Yes. The grade is designed for extrusion-grade conductive PC, with clean surface appearance for chip carrier tape, IC packaging and electronic tray applications.
How can I request a DGK-PC DD5-7JC sample?
Provide the target product, thickness, surface finish, resistance range and processing method. DEYU will prepare a sample or recommend a close formula for validation. Request sample
Application areas
| Application area | Typical parts |
|---|---|
| Electronic trays | ESD trays, electronic component trays, precision transfer trays |
| Chip carrier tape | IC carrier tape, embossed carrier tape, black anti-static tape |
| Semiconductor packaging | Chip packaging reels, separator strips, component positioning strips |
| Thermoformed packaging | ESD blister trays, conductive lids, anti-static inserts |
| Extruded sheet and strip | Conductive PC sheets, thin strips and forming blanks |
| Custom surface finish | Matte trays, high-gloss tape surfaces and appearance parts |
Reference quote
- Minimum price
- USD 6.67/kg
- Maximum price
- USD 8.15/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, surface finish, resistance range or certification requirements require custom production.
Final quotation depends on the specific formula, surface finish, color, order volume and testing requirements.
Data sheet

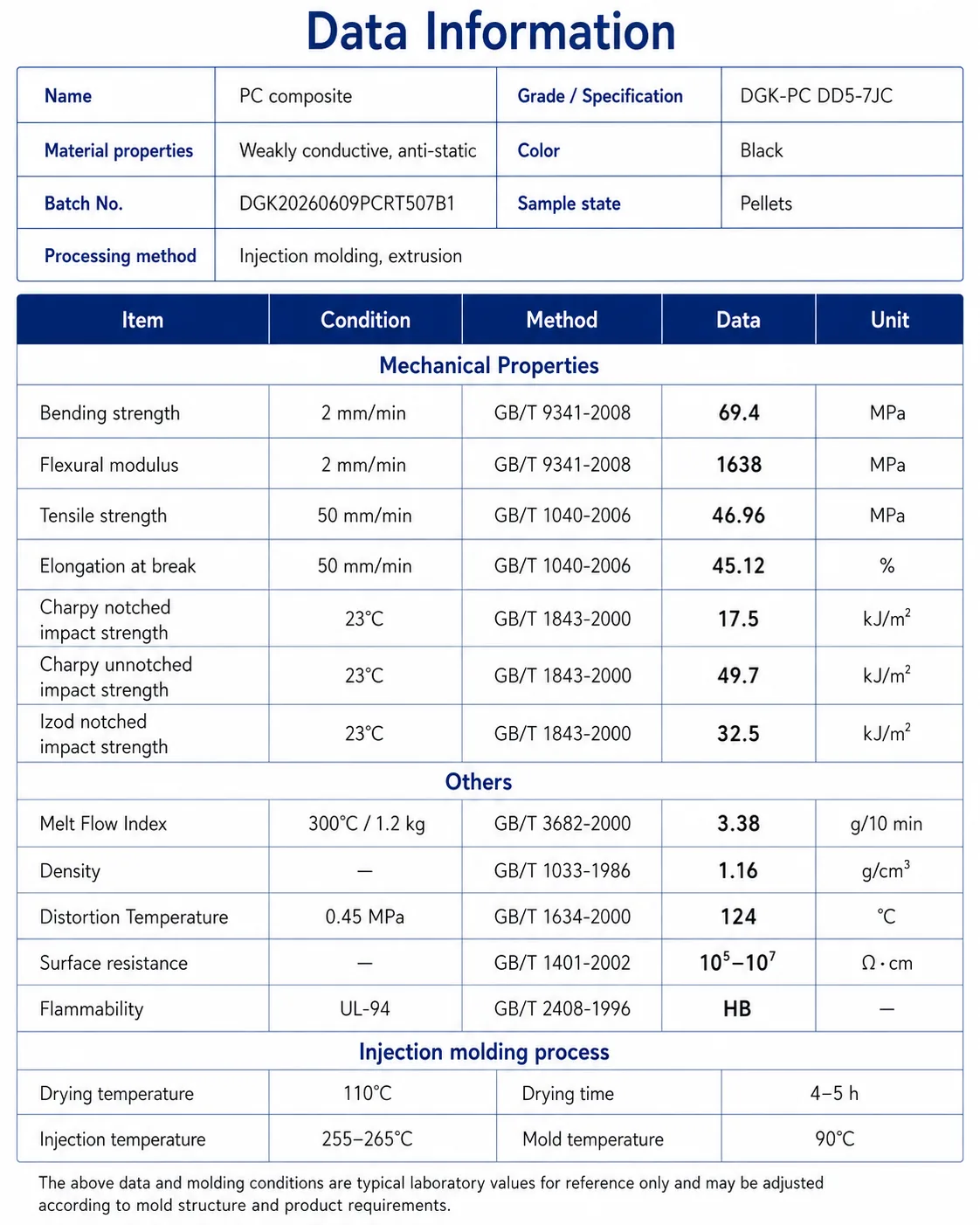

Physical Property Data Sheet
| Name | PC composite | Grade / Specification | DGK-PC DD5-7JC |
|---|---|---|---|
| Material properties | Weakly conductive, anti-static | Color | Black |
| Batch No. | DGK20260609PCRT507B1 | Sample state | Pellets |
| Processing method | Injection molding, extrusion | ||
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Mechanical Properties | ||||
| Bending strength | 2 mm/min | GB/T 9341-2008 | 69.4 | MPa |
| Flexural modulus | 2 mm/min | GB/T 9341-2008 | 1638 | MPa |
| Tensile strength | 50 mm/min | GB/T 1040-2006 | 46.96 | MPa |
| Elongation at break | 50 mm/min | GB/T 1040-2006 | 45.12 | % |
| Charpy notched impact strength | 23°C | GB/T 1843-2000 | 17.5 | kJ/m² |
| Charpy unnotched impact strength | 23°C | GB/T 1843-2000 | 49.7 | kJ/m² |
| Izod notched impact strength | 23°C | GB/T 1843-2000 | 32.5 | kJ/m² |
| Others | ||||
| Melt Flow Index | 300°C / 1.2 kg | GB/T 3682-2000 | 3.38 | g/10 min |
| Density | - | GB/T 1033-1986 | 1.16 | g/cm³ |
| Distortion Temperature | 0.45 MPa | GB/T 1634-2000 | 124 | °C |
| Surface resistance | - | GB/T 1401-2002 | 10⁵-10⁷ | Ω·cm |
| Flammability | UL-94 | GB/T 2408-1996 | HB | - |
| Injection molding process | ||||
| Drying temperature | 110°C | Drying time | 4-5 h | |
| Injection temperature | 255-265°C | Mold temperature | 90°C | |
The above data and molding conditions are typical laboratory values for reference only and may be adjusted according to mold structure and product requirements.
