Aramid Reinforced POM Pellets DGK-POM FL100T
Aramid fiber POM composite for gears, bushings and wear-resistant moving parts
POM aramid fiber composite; wear-resistant, self-lubricating and dimensionally stable.
Aramid reinforced POM compound DGK-POM FL100T for gears, bushings, sliders, moving mechanisms, wear-resistant supports and molded parts requiring strength, durability and stable friction performance. DEYU supports custom formulas, sample validation, bulk purchase and wholesale procurement.
Important parameters
- Base resin
- POM
- Model
- DGK-POM FL100T
- Color
- Custom color matching supported
- Processing
- Injection molding. Injection molding, extrusion or other processes according to the formula.
- Key performance
- POM aramid fiber composite; wear-resistant, self-lubricating and dimensionally stable.
- Status

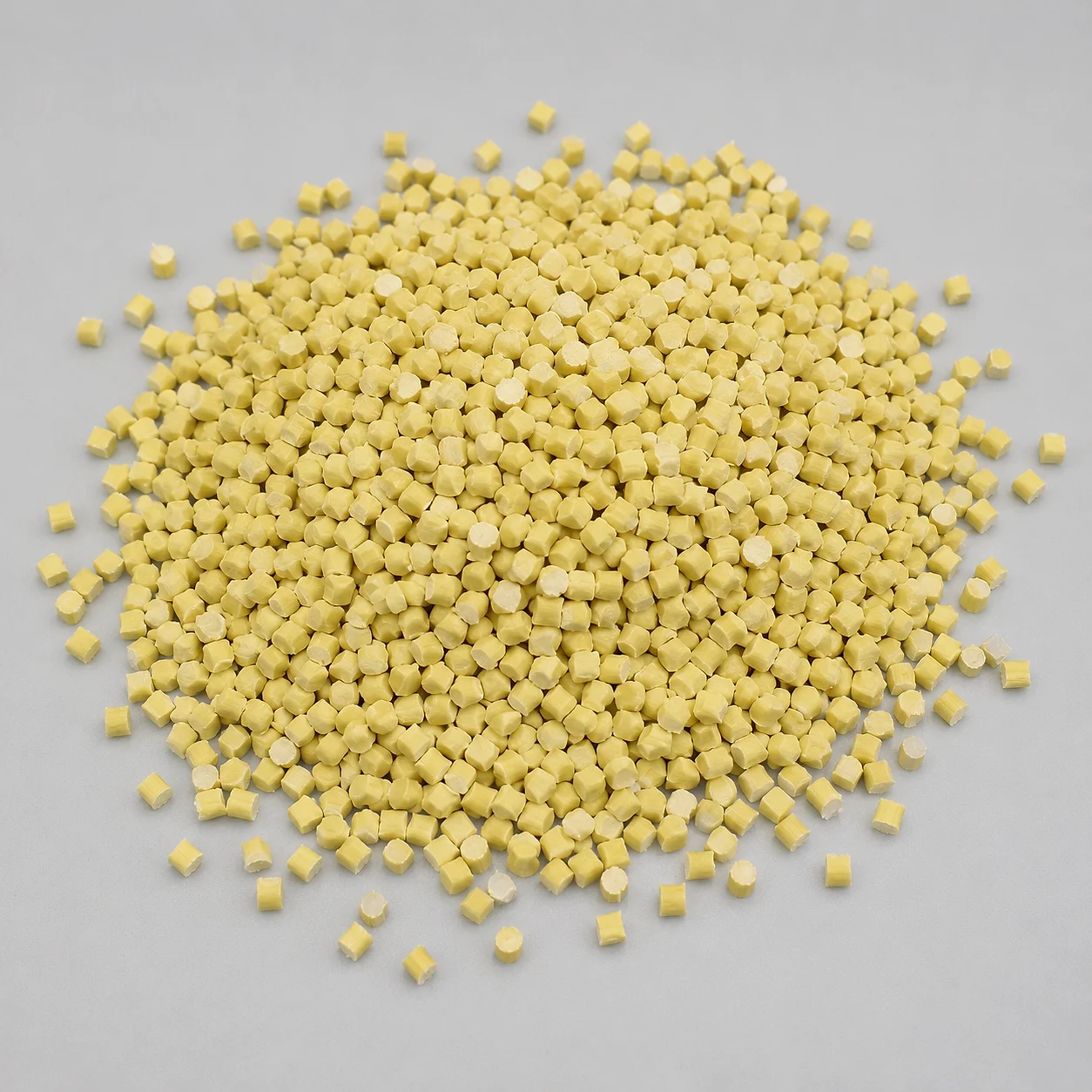

- Pellet compound
FAQ
Can this material be color matched?
Yes. DEYU can match black, natural, white or custom colors according to the base resin, filler system and target appearance.
Can wear resistance and friction be customized?
Yes. PTFE, MoS2, aramid or other wear additives can be adjusted according to the mating material, load and movement speed.
Can international orders receive certification documents?
Yes. DEYU can provide material data sheets and common export documents, and can coordinate RoHS, REACH, UL-related or other third-party testing according to the order requirement.
How can I get a sample of DGK-POM FL100T or a similar material?
Submit the target resin, color, process and performance range. DEYU will suggest a sample grade or prepare a trial formula for sample validation. Request sample

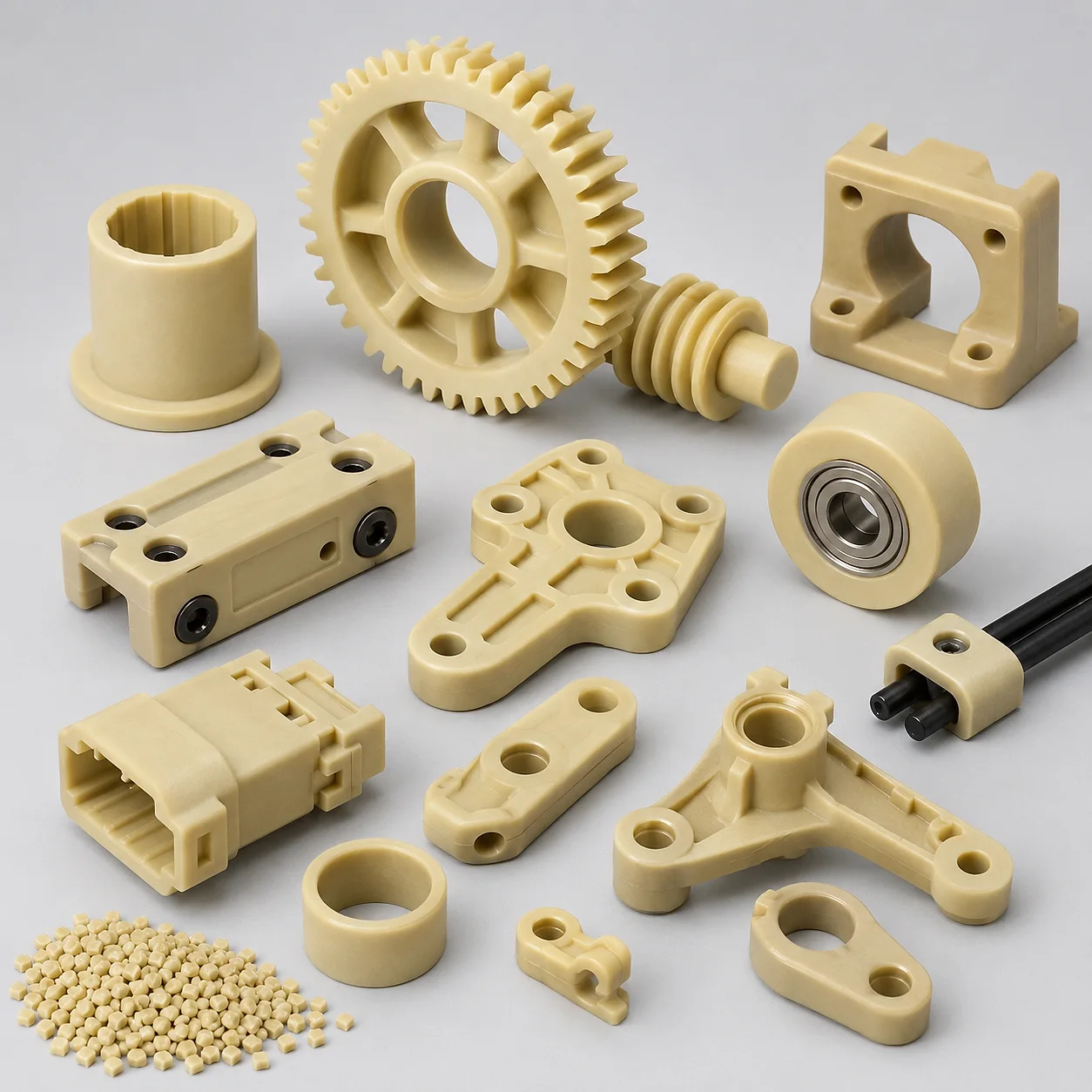

Application areas
| Application area | Typical parts |
|---|---|
| Application area 1 | chair castors |
| Application area 2 | gears |
| Application area 3 | guide sliders |
| Application area 4 | bushings |
| Application area 5 | rollers |
| Application area 6 | textile machine sliding parts |
Reference quote
- Minimum price
- USD 5.9/kg
- Maximum price
- USD 10.8/kg
- Delivery
- Tax-included reference price; freight is not included.
- Stock
- Standard stock reference: 1000 kg. Special color, performance or certification requirements require custom production.
Final quotation depends on the specific formula, color, order volume and testing requirements.

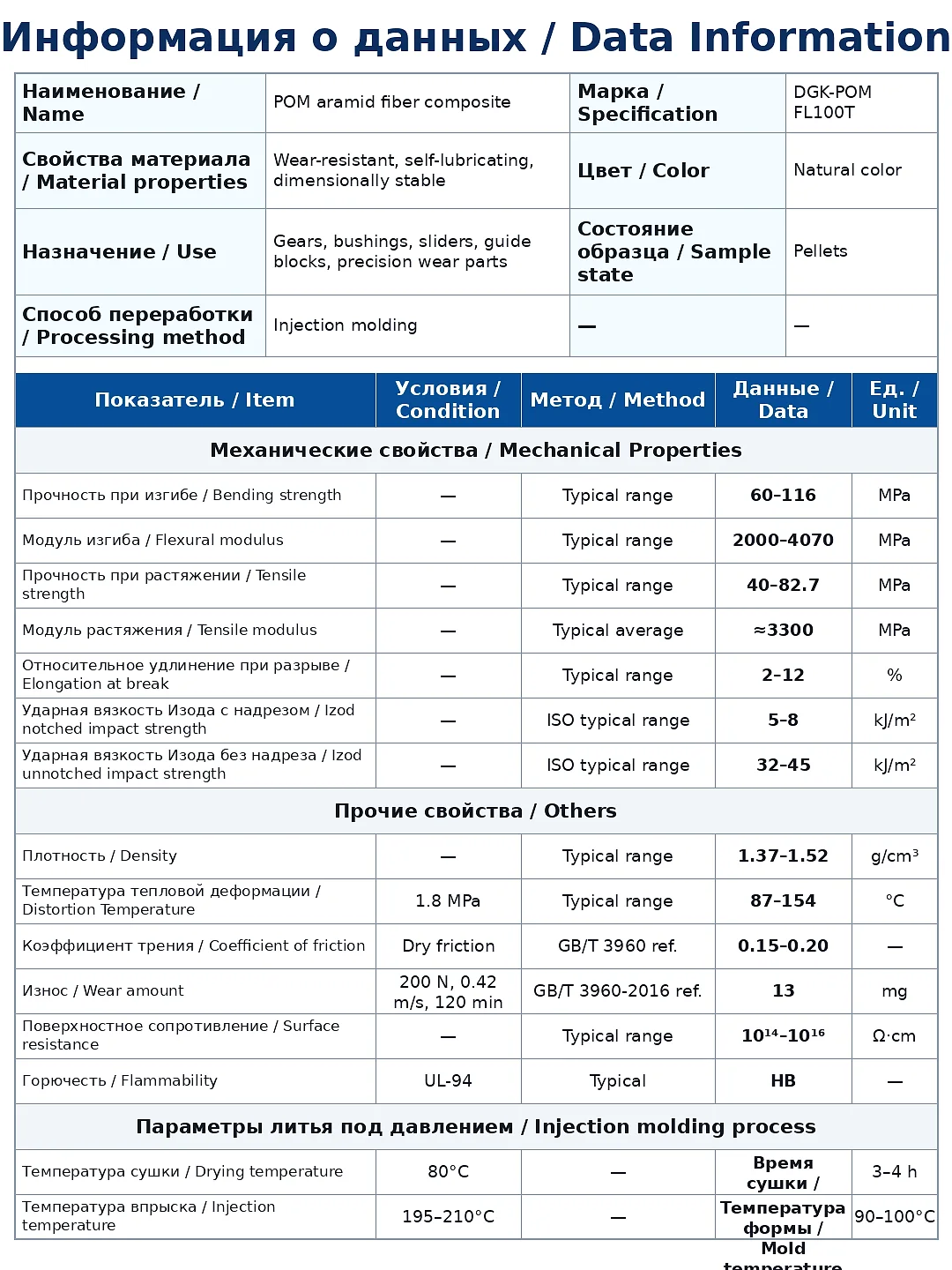

Data sheet
Physical Property Data Sheet
| Name | POM aramid fiber composite | Specification | DGK-POM FL100T |
|---|---|---|---|
| Material properties | Wear-resistant, self-lubricating, dimensionally stable | Color | Natural color |
| Use | Gears, bushings, sliders, guide blocks, precision wear parts | Sample state | Pellets |
| Processing method | Injection molding | - | / |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Mechanical Properties | ||||
| Bending strength | / | Typical range | 60-116 | MPa |
| Flexural modulus | / | Typical range | 2000-4070 | MPa |
| Tensile strength | / | Typical range | 40-82.7 | MPa |
| Tensile modulus | / | Typical average | ~3300 | MPa |
| Elongation at break | / | Typical range | 2-12 | % |
| Izod notched impact strength | / | ISO typical range | 5-8 | kJ/m2 |
| Izod unnotched impact strength | / | ISO typical range | 32-45 | kJ/m2 |
| Others | ||||
| Density | / | Typical range | 1.37-1.52 | g/cm3 |
| Heat distortion temperature | 1.8 MPa | Typical range | 87-154 | ℃ |
| Friction coefficient | Dry friction | GB/T 3960 ref. | 0.15-0.20 | / |
| Wear amount | 200 N, 0.42 m/s, 120 min | GB/T 3960-2016 ref. | 13 | mg |
| Surface resistance | / | Typical range | 10^4-10^9 | ohm-cm |
| Flammability | UL-94 | Typical | HB | / |
| Injection molding process | ||||
| Drying temperature | 80℃ | Drying time | / | |
| Injection temperature | 195-210℃ | Mold temperature | 90-100℃ | |
