Battery Bipolar Plate PP Material DGK-PP DDL28
High-conductivity PP-based carbon-plastic compound for flow battery bipolar plates
Conductivity 25-28 S/cm; resistance 0.4-0.5 Ω; density 1.4; tensile strength 25 MPa; flexural strength >30 MPa.
DGK-PP DDL28 is a PP-based carbon-plastic material developed for battery bipolar plates, extruded sheets and flow-channel components. It is designed for extrusion and open-roll processing, giving very high electrical conductivity while retaining the mechanical balance needed for conductive plate forming, machining and battery-stack assembly.
Important parameters
- Base resin
- PP
- Model
- DGK-PP DDL28
- Product series
- Battery carbon-plastic bipolar plate material
- Color
- Black
- Processing
- Extrusion and open-roll milling / open mill processing
- Key performance
- 25-28 S/cm conductivity, 0.4-0.5 Ω resistance, density 1.4, tensile strength 25 MPa, flexural strength >30 MPa
- Typical form
- Pellet compound for sheet and bipolar plate forming
FAQ
What is DGK-PP DDL28 mainly used for?
DGK-PP DDL28 is intended for flow battery bipolar plates, conductive sheets, flow-channel plates and related battery-stack components that need a PP-based carbon-plastic material with high conductivity and workable mechanical strength.
What conductivity level can this bipolar plate PP material reach?

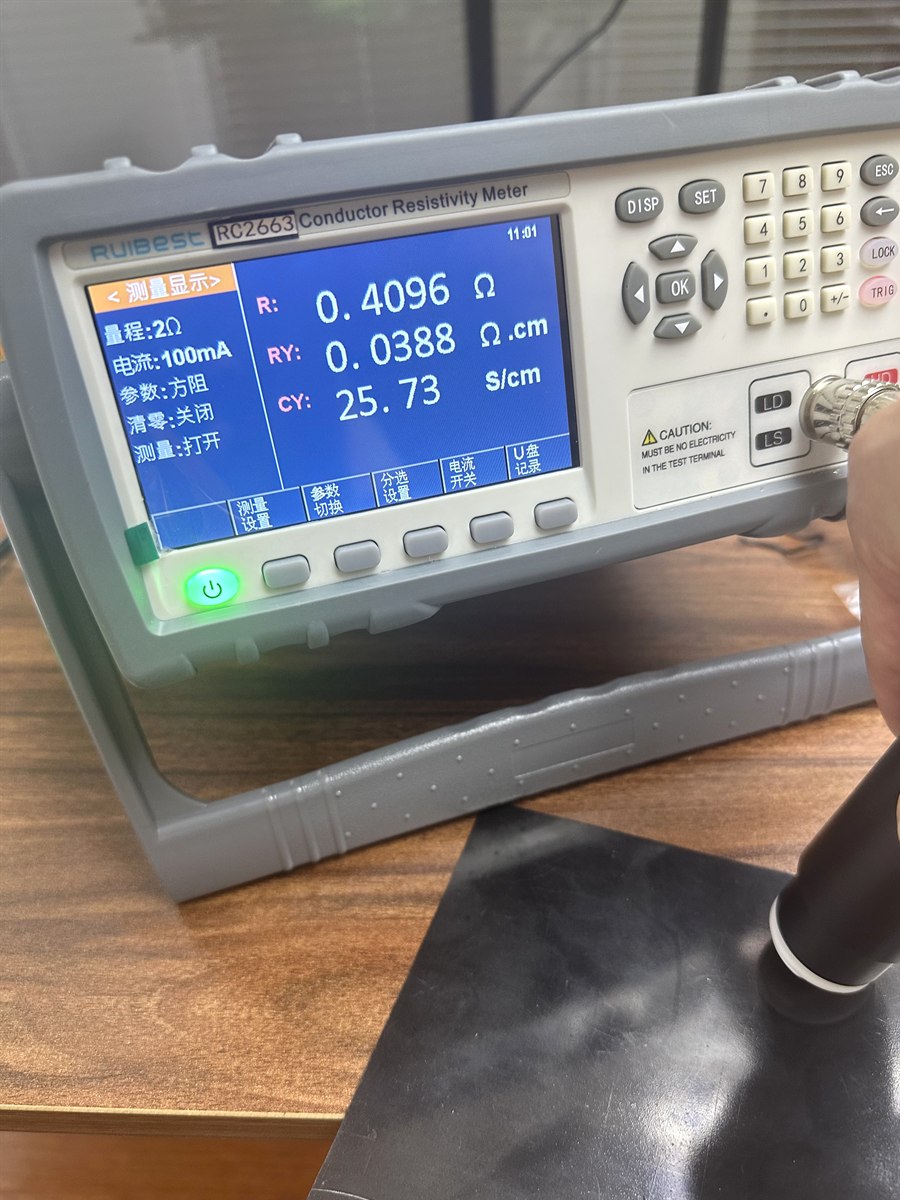

The typical conductivity range is 25-28 S/cm, with resistance around 0.4-0.5 Ω. Final values should be confirmed on the customer plate thickness, pressing condition and flow-channel design.
Which processing methods are recommended for DGK-PP DDL28?
It is developed for extrusion and open-roll milling / open mill processing. During sheet extrusion or plate forming, the conductive network should be kept stable by avoiding unnecessary overheating and excessive shear. Customers usually validate screw temperature, die gap, cooling rate and plate thickness together with conductivity.
Can DEYU adjust the formula for different battery plate designs?
Yes. DEYU can tune conductivity, sheet processability, strength and surface finish according to plate thickness, flow-channel geometry, assembly compression and stack contact-resistance targets, instead of only supplying a general catalog grade.
Application areas
| Application area | Typical use |
|---|---|
| Flow battery bipolar plates | Carbon-plastic bipolar plates for vanadium or other redox flow battery stacks. |
| Conductive PP sheets | Extruded sheets for plate cutting, punching, grooving or secondary machining. |
| Flow-channel plates | Conductive plates with machined or formed flow channels for electrolyte distribution. |
| Battery stack components | Conductive support plates and contact components that require low resistance. |
| Trial production and validation | Small-batch sheet samples for conductivity, forming and assembly testing. |
Quote and sample support
- Project quotation
- Price depends on conductivity target, sample form, quantity and delivery plan.
- Sample support
- Pellet or sheet sample discussion is available for bipolar plate validation.
- Customization
- Formula can be adjusted for conductivity, strength, extrusion stability and plate thickness.
Data sheet
Physical Property Data Sheet
| Name | PP composite | Specification | DGK-PP DDL28 |
|---|---|---|---|
| Material properties | Battery carbon-plastic bipolar plate PP material; high-conductivity grade for extrusion and open-roll processing | Color | Black |
| Use | Flow battery bipolar plates, sheets and flow-channel plates | Sample state | Pellets / sheet sample |
| Processing method | Extrusion / open-roll milling | Engineering confirmation required | Contact a DEYU engineer |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Electrical Properties | ||||
| Conductivity | Typical value | / | 25-28 | S/cm |
| Volume resistance | Typical value | / | 0.4-0.5 | Ω |
| Surface resistance | Project reference | / | Contact a DEYU engineer | Ω |
| Basic Properties | ||||
| Density | Typical value | / | 1.4 | g/cm³ |
| Melt Flow Index | Engineering confirmation required | / | Contact a DEYU engineer | g/10 min |
| Hardness | Engineering confirmation required | / | Contact a DEYU engineer | / |
| Mechanical Properties | ||||
| Tensile strength | Typical value | / | 25 | MPa |
| Flexural strength | Typical value | / | >30 | MPa |
| Elongation at break | Engineering confirmation required | / | Contact a DEYU engineer | % |
| Notched impact strength | Engineering confirmation required | / | Contact a DEYU engineer | kJ/m² |
| Chemical / Battery Compatibility | ||||
| Electrolyte compatibility | Project reference | / | Contact a DEYU engineer | / |
| Processing Recommendations | ||||
| Drying temperature | Contact a DEYU engineer | Drying time | Contact a DEYU engineer | |
| Extrusion temperature | Contact a DEYU engineer | Die / roll setting | Contact a DEYU engineer | |
| Open-roll processing | Contact a DEYU engineer | Application | Flow battery bipolar plates, sheets and flow-channel plates | |
