Weldable PE Bipolar Plate Material DGK-PE DDL20
Weldable PE carbon-plastic material for zinc-bromine flow battery bipolar plates
Extrusion forming; weldable; good corrosion resistance; density 1.4 g/cm³; tensile strength >25 MPa; flexural strength >25 MPa.
DGK-PE DDL20 is a PE-based carbon-plastic bipolar plate material developed for extrusion forming and weldable sheet components. It is mainly used in zinc-bromine flow battery systems where corrosion resistance, stable sheet forming and dependable physical-mechanical properties are required.
Important parameters
- Base resin
- PE
- Model
- DGK-PE DDL20
- Product series
- Battery Carbon-Plastic Bipolar Plate Materials
- Processing
- Extrusion forming and welding
- Key performance
- Extrusion forming; weldable; good corrosion resistance; density 1.4 g/cm³; tensile strength >25 MPa; flexural strength >25 MPa.
- Main battery system
- Zinc-bromine flow battery
FAQ
What is DGK-PE DDL20 mainly used for?
DGK-PE DDL20 is mainly used for zinc-bromine flow battery bipolar plates, extruded sheets and welded plate assemblies that need PE-based chemical resistance and carbon-plastic electrical performance.
Why use PE for zinc-bromine flow battery bipolar plates?
PE offers good corrosion resistance in zinc-bromine battery environments and can be processed into weldable sheet structures. DGK-PE DDL20 is designed to keep that processability while providing useful mechanical strength for plate handling and assembly.
What processing route is recommended?
The grade is intended for extrusion forming. Sheet thickness, cooling rate, die setting and welding process should be validated together because they affect plate flatness, weld quality and final stack assembly.
What mechanical values should engineers reference first?
Typical project values are density 1.4 g/cm³, tensile strength >25 MPa and flexural strength >25 MPa. Final design should still verify the actual plate thickness, welding design and electrolyte exposure condition.
Application areas
| Application area | Typical use |
|---|---|
| Zinc-bromine flow battery plates | Bipolar plates and sheet components for zinc-bromine flow battery systems. |
| Extruded PE sheets | Weldable carbon-plastic PE sheets for cutting, machining and plate assembly. |
| Welded battery components | Components requiring PE weldability and corrosion resistance in electrolyte environments. |
| Pilot battery stack validation | Sheet samples for extrusion, welding, corrosion and mechanical tests. |
Quote and sample support
- Project quotation
- Quotation depends on sheet form, thickness, test target, quantity and delivery plan.
- Sample support
- Pellet or sheet samples can be discussed for zinc-bromine flow battery validation.
- Customization
- Formula can be tuned for extrusion stability, weldability, corrosion resistance and mechanical strength.
Data sheet
Physical Property Data Sheet
| Name | PE composite | Specification | DGK-PE DDL20 |
|---|---|---|---|
| Material properties | Weldable PE carbon-plastic bipolar plate material with good corrosion resistance and physical-mechanical performance | Color | Black |

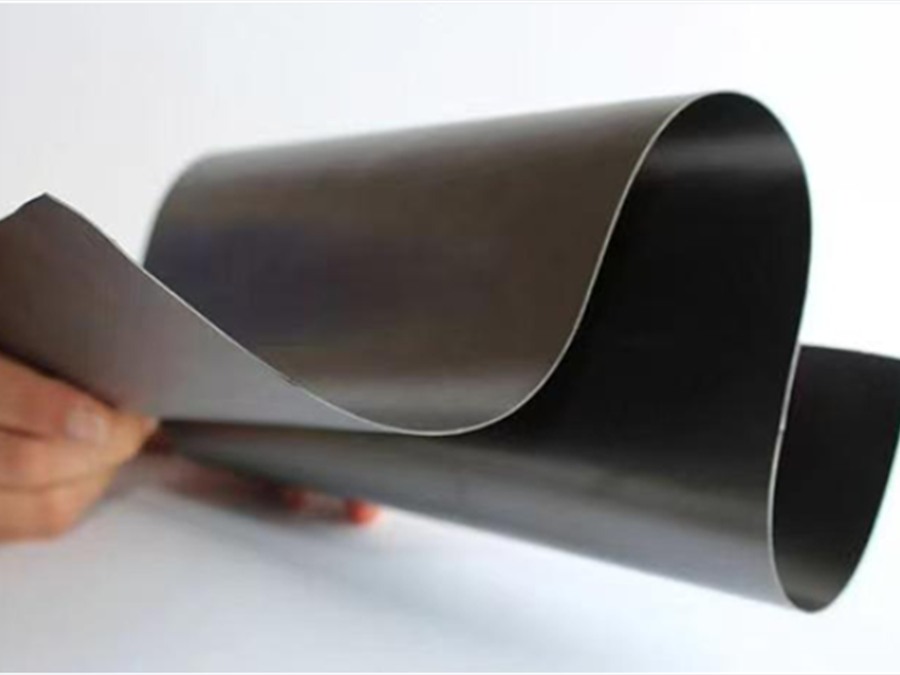

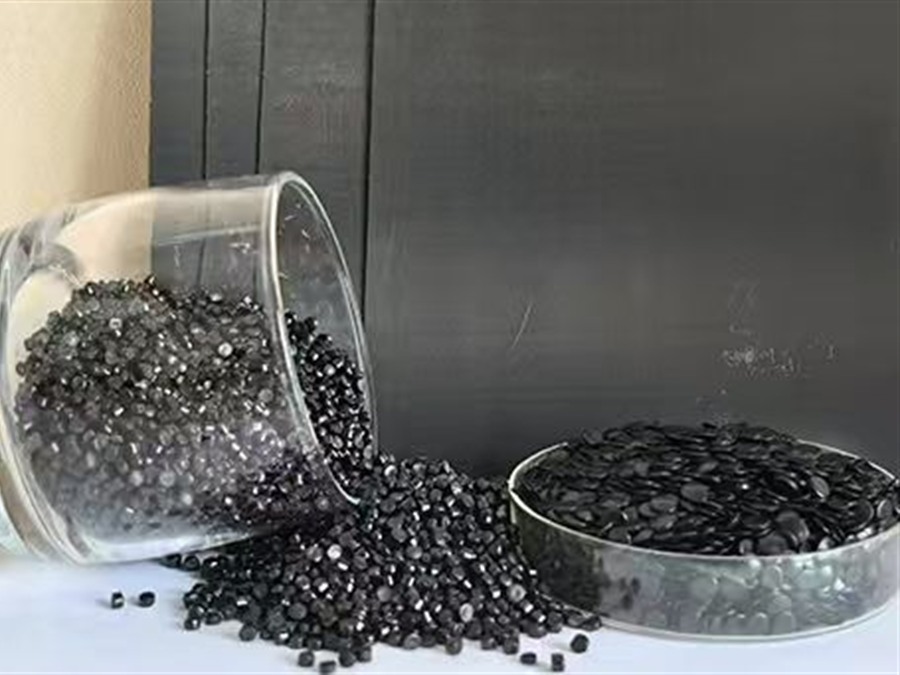

| Use | Zinc-bromine flow battery bipolar plates, sheets and welded plate components | Sample state | Pellets / flexible sheet sample |
| Processing method | Extrusion forming / welding | Engineering confirmation required | Contact a DEYU engineer |
| Item | Condition | Method | Data | Unit |
|---|---|---|---|---|
| Electrical Properties | ||||

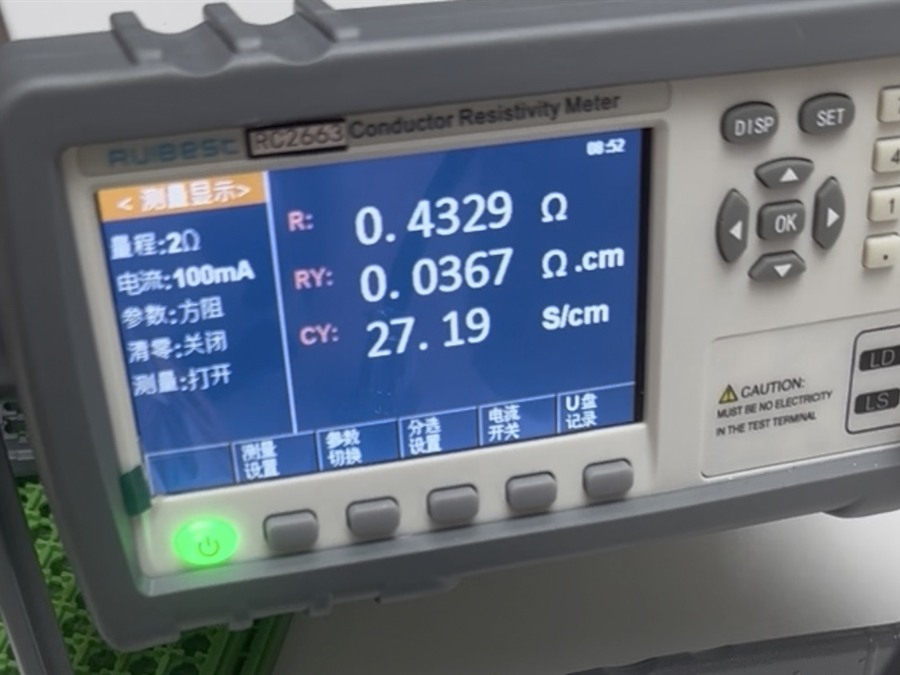

| Conductivity | Project reference | / | Contact a DEYU engineer | S/cm |
| Volume resistance | Project reference | / | Contact a DEYU engineer | Ω |
| Surface resistance | Project reference | / | Contact a DEYU engineer | Ω |
| Basic Properties | ||||
| Density | Typical value | / | 1.4 | g/cm³ |
| Melt Flow Index | Engineering confirmation required | / | Contact a DEYU engineer | g/10 min |
| Hardness | Engineering confirmation required | / | Contact a DEYU engineer | / |
| Mechanical Properties | ||||
| Tensile strength | Typical value | / | >25 | MPa |
| Flexural strength | Typical value | / | >25 | MPa |
| Elongation at break | Engineering confirmation required | / | Contact a DEYU engineer | % |
| Notched impact strength | Engineering confirmation required | / | Contact a DEYU engineer | kJ/m² |
| Chemical / Battery Compatibility | ||||
| Weldability | Typical value | / | Weldable | / |
| Corrosion resistance | Typical value | / | Good | / |
| Electrolyte compatibility | Project reference | / | Contact a DEYU engineer | / |
| Processing Recommendations | ||||
| Drying temperature | Contact a DEYU engineer | Drying time | Contact a DEYU engineer | |
| Extrusion temperature | Contact a DEYU engineer | Die / roll setting | Contact a DEYU engineer | |
| Welding process | Contact a DEYU engineer | Application | Zinc-bromine flow battery bipolar plates, sheets and welded plate components | |
