Black, White or Colored Light-Blocking Plastic: Which Route Fits Your Part?
This page is written for buyers, product engineers and mold engineers who need to choose between black, white or colored light-blocking plastic compounds. The focus is color route selection, opacity balance, wall thickness validation, processing feasibility and finished part light leakage testing.
Search Intent / Page Positioning
This page is written for buyers, product engineers and mold engineers who need to choose between black, white or colored light-blocking plastic compounds. The focus is color route selection, opacity balance, wall thickness validation, processing feasibility and finished part light leakage testing.
Light Diffusion and Shading Plastics and DGK-ABS ZG176A Light-Shielding ABS. Use the category page for optical and opaque thermoplastic route selection, and the DGK-ABS ZG176A page when the project needs light-shielding ABS for LED-adjacent housings.
1. Background / Problem
Light-blocking plastic is used when a molded part must prevent visible light, LED light or internal backlight from passing through the plastic wall. This requirement appears in electronic housings, sensor covers, optical components, display structures, appliance parts, automotive interior covers and light-sensitive packaging.
A common buyer question is simple:
Should we choose black, white or customized colored light-blocking plastic?
The answer depends on more than appearance. Black plastic is usually easier to design for strong opacity, but the final part still needs wall-thickness validation. White plastic can look clean and suitable for appliance or medical-style products, but the formulation must balance opacity, whiteness and surface appearance. A colored light-blocking compound usually needs a customized pigment system because color matching, opacity and processing stability must be achieved at the same time.
The practical selection logic is:
part color requirement -> light-blocking target -> wall thickness -> resin type -> pigment route -> processing trial -> finished part validation.
2. Technical Difficulty / Why It Happens
Color and opacity are related, but they are not the same. A plastic part can look dark or colorful under normal room light and still show leakage under strong LED inspection. This is especially common in thin-wall parts, weld-line areas, screw columns, snap-fit structures and long-flow regions.
2.1 Black Route Is Usually Stronger for Opacity
Black light-blocking plastic often uses carbon black or black pigment systems. This route is commonly used when the product can accept black appearance and needs strong shielding.
However, the final result still depends on filler dispersion, wall thickness and molding stability. A thin area around 0.8 mm may need different formulation attention than a 2.0 mm wall.
2.2 White Route Needs More Balance
White opaque plastic usually uses titanium dioxide or composite white pigment systems. The difficulty is that a bright white appearance and strong light-blocking performance must be balanced together.
If the product requires a clean white surface, good color consistency and low light transmission, the material should be validated by both appearance inspection and backlight inspection.
2.3 Colored Route Requires Customized Matching
Colored light-blocking plastic is more complex because the material must match the target color while also reducing light transmission. Some colors are naturally easier to shield light, while lighter or brighter colors may require stronger pigment design.
For colored housings, DEYU usually evaluates color target, wall thickness, light source, surface texture and processing method together before recommending a route.
3. DEYU Material Direction
DEYU may support black, white and customized colored light-blocking plastic compounds based on PP, ABS, PE, PC, PA, PBT and related modified plastic systems.
The existing product range includes light diffusion and shading plastics for optical or opaque thermoplastic routes. For a published grade reference, DGK-ABS ZG176A is a light-shielding ABS compound. The product page states that a 2 mm housing wall can block light when placed close to LED beads, and the material is used for electronic and electrical accessories, LED-adjacent housings, opaque covers and light-blocking ABS parts.
The material direction is usually evaluated from these points:
| Selection Factor | Engineering Evaluation Direction |
|---|---|
| Target color | Black, white, gray, customized color or color-matched compound |
| Light-blocking level | General opacity, LED light blocking, optical shielding or low light transmission |
| Base resin | PP, ABS, PE, PC, PA, PBT or another resin according to application |
| Wall thickness | 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm or customer-specific structure |
| Pigment route | Carbon black, titanium dioxide, composite pigment or color-matched opaque system |
| Processing method | Injection molding, extrusion, profile extrusion or sheet extrusion |
| Surface requirement | Gloss, matte texture, color stability, visible surface or hidden part |
| Validation method | Visual inspection, LED backlight test, light transmission test or fixture test |
The goal is not only to make the part darker or whiter. The goal is to achieve stable light-blocking performance under the actual part structure and inspection method.
4. Color Route Comparison
4.1 Black Light-Blocking Plastic
Black is usually the most direct route for strong light-blocking performance. It is suitable for internal functional parts, optical shielding structures, sensor covers and electronic housings where black appearance is acceptable.
Typical route:
- carbon black or black pigment system
- strong opacity direction
- suitable for hidden or functional components
- usually easier to reach low light transmission
- suitable for PP, ABS, PE, PA, PBT and other systems
Black light-blocking plastic is often selected when the customer's main target is shielding rather than decorative appearance.
4.2 White Light-Blocking Plastic
White opaque plastic is often used for appliance housings, medical-style covers, consumer product shells and parts where clean appearance is important.
Typical route:
- titanium dioxide or composite white pigment system
- opacity and whiteness balance
- surface appearance validation required
- wall thickness should be confirmed
- suitable for visible parts with light-blocking requirement
White materials should be tested carefully under the customer's actual light source, because white appearance does not automatically mean strong light blocking at thin-wall positions.
4.3 Colored Light-Blocking Plastic
Colored light-blocking plastic is suitable when the part must meet both brand color and light-blocking requirements. It is often used for consumer products, appliance components, automotive interior parts and customized electronic housings.
Typical route:
- color-matched pigment system
- composite opaque modification
- color difference control
- light leakage validation
- customized formulation according to wall thickness and target color
Colored routes usually need closer communication between buyer, material supplier and molding factory because the final result depends on color card, resin base, wall thickness and inspection standard.
5. Product Data Table
The following table is a reference direction for black, white and colored light-blocking plastic compound selection. Project-specific values should be confirmed by DEYU internal testing and finished part trials.
| Item | Black Light-Blocking Route | White Opaque Route | Colored Light-Blocking Route |
|---|---|---|---|
| Product Direction | DGK black light-blocking compound | DGK white opaque compound | DGK color-matched light-blocking compound |
| Base Resin | PP / ABS / PE / PA / PBT | PP / ABS / PC / PA / PBT | PP / ABS / PE / PC / PA / PBT |
| Modification Route | Carbon black / black pigment system | Titanium dioxide / composite white pigment | Composite pigment / customized color route |
| Processing Method | Injection molding / extrusion | Injection molding / extrusion | Injection molding / extrusion |
| Color | Black | White | Customer-specified color |
| Published Grade Reference | Application-specific route | DGK-ABS ZG176A Light-Shielding ABS | Customized color-matched opaque route |
| Verified Product Note | Confirm by part-level light test | 2 mm ABS housing wall can block light close to LED beads, according to the DGK-ABS ZG176A product page | Confirm with color card, light source and wall thickness |
| Density | Internal test value required by formulation | Internal test value required by formulation | Internal test value required by formulation |
| MFR / Melt Flow Rate | Internal test value required by formulation | Internal test value required by formulation | Internal test value required by formulation |
| Tensile Strength | Internal test value required by formulation | Internal test value required by formulation | Internal test value required by formulation |
| Flexural Modulus | Internal test value required by formulation | Internal test value required by formulation | Internal test value required by formulation |
| Notched Impact Strength | Internal test value required by formulation | Internal test value required by formulation | Internal test value required by formulation |
| HDT | Internal test value required by formulation | Internal test value required by formulation | Internal test value required by formulation |
| Light Transmission at 1.0 mm | Must be tested by project | Must be tested by project | Must be tested by project |
| Light Leakage Under LED Test | Must be tested on the molded part | Must be tested on the molded part | Must be tested on the molded part |
| Typical Applications | Sensor covers, internal covers, electronic housings | Appliance covers, white housings, LED-adjacent covers | Branded housings, colored covers, automotive interior parts |
| Selection Note | Strong opacity direction | Appearance and opacity balance | Color matching and opacity balance |
6. Selection Matrix
| Part Requirement | Recommended Route | Engineering Reason |
|---|---|---|
| Hidden internal shielding part | Black route | Strong light-blocking direction and practical formulation control |
| Visible white appliance cover | White opaque route | Balances clean appearance and opacity |
| Brand color electronic housing | Colored light-blocking route | Supports color matching and light leakage control |
| Very thin wall below 1.0 mm | Black or customized route | Requires stronger shielding design and part-level test |
| High-gloss visible surface | White or colored route with appearance validation | Surface quality and color consistency should be checked |
| Optical shielding component | Black route or specialized route | Stronger light-blocking direction is usually preferred |
| Consumer product shell | White or colored route | Appearance, color and opacity should be balanced |
| Low light leakage around LED | Black route or composite colored route | LED backlight inspection should guide formulation |

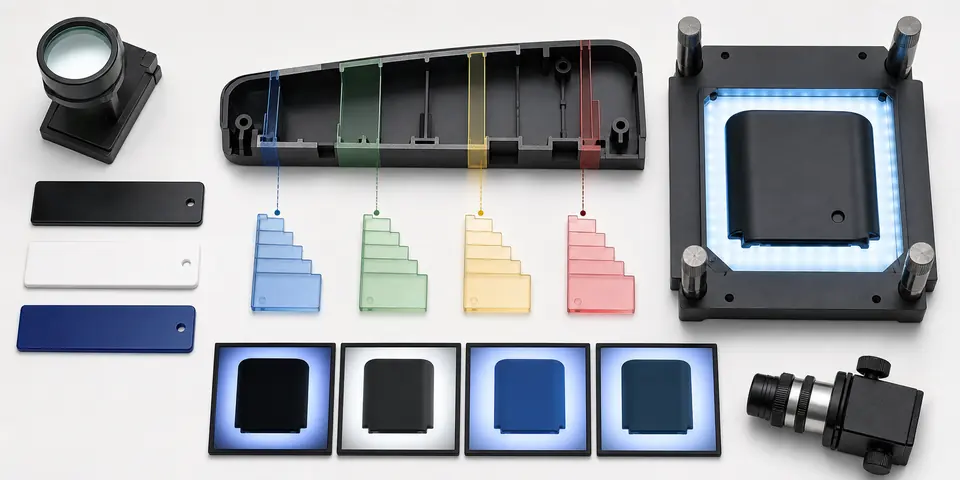

7. Customer Debugging / Validation Scenario
The following is a validation scenario structure, not a public customer case. It shows how a buyer may compare black, white and colored light-blocking plastic for a small electronic cover.
7.1 Original Situation
A customer planned to use a colored ABS cover for an electronic product. The part needed to match the product design color while reducing LED light leakage from an internal indicator area.
During the first trial with standard color-matched ABS, the part passed normal visual inspection, but light leakage was visible around the thin-wall side area and near the internal LED window.
Original internal trial structure:
| Original Item | Reference Direction / Original Trial Data |
|---|---|
| Base Material | Standard color-matched ABS |
| Target Color | Customer design color |
| Main Wall Thickness | 1.2 mm |
| Local Thin-Wall Area | 0.85-0.95 mm |
| LED Light Leakage Rate | 10-15% reference direction |
| Color Difference Delta E | 1.5-2.5 reference direction |
| Molding Scrap Rate | 3-5% reference direction |
| Assembly Scrap Rate | 2-4% reference direction |
| Visible Leakage Position | Thin-wall side area, LED nearby area, weld-line region |
| Monthly Production Estimate | 40,000-60,000 pieces |
| Customer Target | Maintain color appearance while reducing visible light leakage |
Project-specific values should be confirmed by actual trial data before publication or customer reporting.
7.2 DEYU Trial Direction and Parameter Changes
DEYU may evaluate three trial routes: black light-blocking route, white opaque route and customized colored light-blocking route. Since the customer still wants the product design color, the colored light-blocking route may be selected as the main validation direction, while black and white routes can be used as technical references.
| Trial Parameter | Original Direction | DEYU Adjustment Direction |
|---|---|---|
| Base Resin | Standard color-matched ABS | Customized light-blocking ABS compound |
| Color Route | Ordinary color matching | Color-matched opaque pigment system |
| Pigment System | General color pigment | Composite pigment route for opacity and color balance |
| Pigment Loading Index | 100 reference index | 115-130 reference index |
| Melt Flow Direction | Standard ABS flow | Balanced flow for 0.85-1.2 mm wall thickness |
| Mold Temperature | 45-55 deg C reference range | 55-65 deg C reference range |
| Injection Speed | Medium speed | Medium-high speed to improve thin-wall filling |
| Holding Pressure | Original setting | Slightly increased holding pressure direction |
| Inspection Method | Normal visual inspection | LED backlight test plus color difference check |
| Sample Quantity | Reference direction | Small-batch validation before production |
7.3 Trial Result Data
After using a customized colored light-blocking route and an adjusted processing window, the validation structure may be recorded as follows:
| Validation Item | Original Data | Trial Result Direction | Engineering Interpretation |
|---|---|---|---|
| LED Light Leakage Rate | 10-15% | 2-5% reference direction | Color-route adjustment improved shielding at thin-wall and LED nearby areas. |
| Color Difference Delta E | 1.5-2.5 | 1.0-2.0 reference direction | Color appearance remained within a controlled development direction. |
| Molding Scrap Rate | 3-5% | 2-4% reference direction | Flow balance supported stable trial molding. |
| Assembly Scrap Rate | 2-4% | 1-3% reference direction | Improved part consistency supported assembly. |
| Visible Leakage at 1.2 mm | Occasional | Reduced | Main wall area showed better opacity direction. |
| Visible Leakage at 0.9 mm | Frequent | Lower leakage tendency | Thin-wall shielding improved after pigment route adjustment. |
| Surface Appearance | Acceptable under room light | Stable color appearance direction | Appearance and light-blocking balance improved together. |
| Pass Rate Under Customer Fixture | Reference direction | Reference direction | Final confirmation should follow customer fixture and production trial. |
Project-specific values should be replaced by actual DEYU or customer trial data when available.
7.4 Solution Analysis
In this validation scenario, DEYU focuses on helping the customer keep the required product color while improving light-blocking performance under LED inspection. The main adjustment is not only increasing pigment strength, but also balancing color matching, opacity and melt flow for the actual wall thickness.
Through the customized colored light-blocking route, the trial direction shows lower light leakage tendency in thin-wall areas and more stable inspection performance near the LED region. Processing adjustment also supports a more suitable molding window for the cover structure.
Further optimization may include lower leakage at thinner wall thickness, tighter color difference control, better surface stability and stronger batch-to-batch balance between color and opacity.
8. Result Interpretation
When choosing black, white or colored light-blocking plastic, the final decision should not depend only on color.
A practical evaluation should include five layers:
Target color Color must match the part appearance and customer standard.
Light-blocking target The material should be checked under the actual light source, such as LED, backlight or strong visible light.
Wall thickness Key zones such as 0.8 mm, 1.0 mm, 1.2 mm and 2.0 mm should be tested separately.
Processing stability Flowability, shrinkage, weld-line quality and surface appearance should be recorded during molding.
Finished part validation Light leakage should be tested on the molded part, not only on standard plaques.
9. Suitable Applications
Black, white and colored light-blocking plastic compounds may be used for:
- electronic housings
- sensor covers
- LED-related structures
- internal display parts
- appliance covers
- automotive interior components
- optical shielding parts
- light-sensitive packaging
- consumer product housings
- customized colored functional molded parts
10. What Buyers Should Provide
To select a suitable color route for light-blocking plastic, buyers should provide:
| Buyer Input | Why It Matters |
|---|---|
| Target Color | Defines whether black, white or colored route should be evaluated. |
| Color Card or Sample | Helps evaluate color matching direction and Delta E control. |
| Base Resin | ABS, PP, PE, PC, PA and PBT influence pigment and processing routes. |
| Part Drawing | Wall thickness and flow length influence light leakage risk. |
| Light Source | LED, backlight or visible light changes inspection severity. |
| Test Method | Visual inspection, light transmission measurement and fixture testing should be aligned. |
| Surface Requirement | Gloss, matte texture and visible-surface requirements influence formulation. |
| Current Leakage Data | Original leakage percentage and location help guide adjustment. |
| Processing Method | Injection molding and extrusion may require different flow design. |
| Monthly Production | Supports cost, stability and supply planning evaluation. |
11. Conclusion
Choosing between black, white and colored light-blocking plastic is a balance between opacity, appearance, wall thickness and processing stability.
Black light-blocking plastic is often suitable for strong shielding and internal functional parts. White opaque plastic is useful when the part needs both clean appearance and light blocking. Colored light-blocking plastic is suitable when the customer needs a brand color, customized appearance and controlled light leakage at the same time.
DEYU can support customized light-blocking plastic compound development for PP, ABS, PE, PC, PA, PBT and related materials. Through color-route comparison, small-batch trials and finished part testing under LED light, DEYU can help buyers choose a more suitable route for housings, covers, optical components and functional injection-molded parts.
Final material data should be confirmed by internal testing and customer part-level validation.
