Engineering Material Solution for Antistatic, Flame-Retardant, High-Strength and Color-Customized Electrical Enclosures
Electrical enclosures increasingly need four properties at once: static dissipation, flame retardancy, structural strength and a brand-specific color. This guide explains how DGK-PA6 KJD789R-G30F combines a permanent antistatic PA6 alloy, flame-retardant formulation and 30% glass-fiber reinforcement, then follows the route through injection molding and part-level validation.
Buyer and engineer FAQ
Questions engineers often ask about this material route
What is the antistatic range of DGK-PA6 KJD789R-G30F?
The public product positioning states about 10^7-10^9 ohm. The current batch data table records 10^8-10^10 under GB/T 1401-2002. The order specification must therefore define the target, specimen, conditioning and test method before sample approval.
Does V-0 apply at every wall thickness?
No. The current product data records V0, while the enclosure project reported V-0 at 1.6 mm. Flame rating must always be confirmed at the required thickness and with the applicable certificate or test report.
Can this glass-fiber-reinforced antistatic PA6 be color matched?
Yes. The non-carbon-black antistatic route provides a natural or light base that can be matched to colors such as RAL 7035, subject to resistance, flame and color validation on the final formulation.
What processing window should be used first?
Use the current product data as the starting point: dry at 130 C for 4-5 hours, inject at 235-245 C and use a 90 C mold. Final settings must follow moisture, part thickness, flow length, warpage and surface quality.
1. The Four Gates for Electrical Enclosures: Each One Is Harder Than the Last
Electrical enclosure design is becoming increasingly complex. An industrial inverter housing must withstand impact and vibration on the shop floor, avoid ignition during overload heating, prevent accumulated static charge from attracting dust that blocks heat dissipation, and still match the equipment brand color, such as deep gray, light gray or signal blue, rather than defaulting to conductive black.
Each target is straightforward on its own: add glass fiber for strength, a flame-retardant system for fire performance, an antistatic phase for charge dissipation and pigments for color. The real difficulty is placing all four in one formulation without allowing them to interfere with one another.
Flame retardants and antistatic systems are well known for interacting. The first must control combustion and form a protective char or interrupt the flame chemistry, while the second must build a continuous dissipation path through the material. Glass fiber adds another variable: fiber orientation produces anisotropic shrinkage and affects dimensional precision, while exposed fibers can reduce surface gloss and make a colored enclosure look uneven. Conventional routes often meet only two or three of the four requirements, sacrificing color for black, strength for a less reinforced thin wall, or flame rating for easier processing.
DGK-PA6 KJD789R-G30F was developed by DEYU as a combined engineering route for these four requirements.
2. Grade Interpretation: Every Part of the Name Has an Engineering Meaning
| Code | Engineering meaning |
|---|---|
| PA6 | Nylon 6 base resin with mechanical strength, heat resistance and chemical resistance. |
| KJD | DEYU permanent-antistatic series using a polymeric antistatic phase anchored in the matrix rather than a migrating small molecule. |
| 789R | Public product positioning around 10^7-10^9 ohm; the current batch table reports 10^8-10^10, so the purchase target and method must be locked before approval. |
| G30 | 30% glass-fiber reinforcement for structural strength and stiffness. |
| F | Flame-retardant formulation; the current product data records V0. |
The name therefore defines the intended product position: a high-strength PA6 compound combining long-term static dissipation, flame retardancy and color customization. Because resistance and flame results depend on specimen thickness, conditioning and test method, the approved TDS and molded-part validation remain the release basis.
3. Key Physical Property Data
The current public product table for DGK-PA6 KJD789R-G30F gives the following batch data. These values replace conflicting draft figures and keep the solution page aligned with the product page.
| Property | Current data | Test condition or method | Meaning for an enclosure |
|---|---|---|---|
| Surface resistance | 10^8-10^10 ohm-cm | GB/T 1401-2002 | Static-dissipative project direction; final acceptance requires a defined specimen and fixture. |
| Flammability | V0 | GB/T 2408-1996 / UL-94 designation | Flame performance must be confirmed at the required wall thickness. |
| Tensile strength | 124 MPa | GB/T 1040-2006 | Load-bearing capability for mounting, impact and assembly. |
| Flexural modulus | 4592 MPa | GB/T 9341-2008, 2 mm/min | High rigidity and improved dimensional support. |
| Elongation at break | 9.39% | GB/T 1040-2006, 50 mm/min | Deformation margin must be considered at clips and screw bosses. |
| Charpy notched impact | 8.9 kJ/m2 | GB/T 1043.1-2008, 23 C | Reference for impact-sensitive corners and openings. |
| Izod notched impact | 12.1 kJ/m2 | GB/T 1843-2000, 23 C | Reference for notched molded structures. |
| Melt flow index | 17.2 g/10 min | 255 C / 5 kg, GB/T 3682-2000 | Process-flow reference for ribs, vents and thin sections. |
| Density | 1.338 g/cm3 | GB/T 1033-1986 | Part-mass and material-consumption calculation. |
| Heat distortion temperature | 145.7 C | 0.45 MPa, GB/T 1634-2000 | Thermal design reference; it is not an unrestricted continuous-use temperature. |
The electrical value is intended to dissipate accumulated charge without relying on a conductive-black appearance. The V0 result addresses flame behavior, while 124 MPa tensile strength and 4592 MPa flexural modulus provide the structural basis for industrial housings. The 145.7 C heat-distortion result is measured at 0.45 MPa and must not be substituted with an unverified value at 1.82 MPa.
4. Technical Route: Making the Four Targets Work Together
4.1 Polymeric Permanent Antistatic System: No Dependence on a Consumable Surface Layer
Traditional antistatic formulations often use small-molecule surfactants that migrate slowly to the surface and form a moisture-assisted conductive film. In PA6 this route faces two problems: the processing temperature is high enough to challenge the thermal stability of some small molecules, and PA6 moisture uptake makes the surface film sensitive to environmental conditioning.

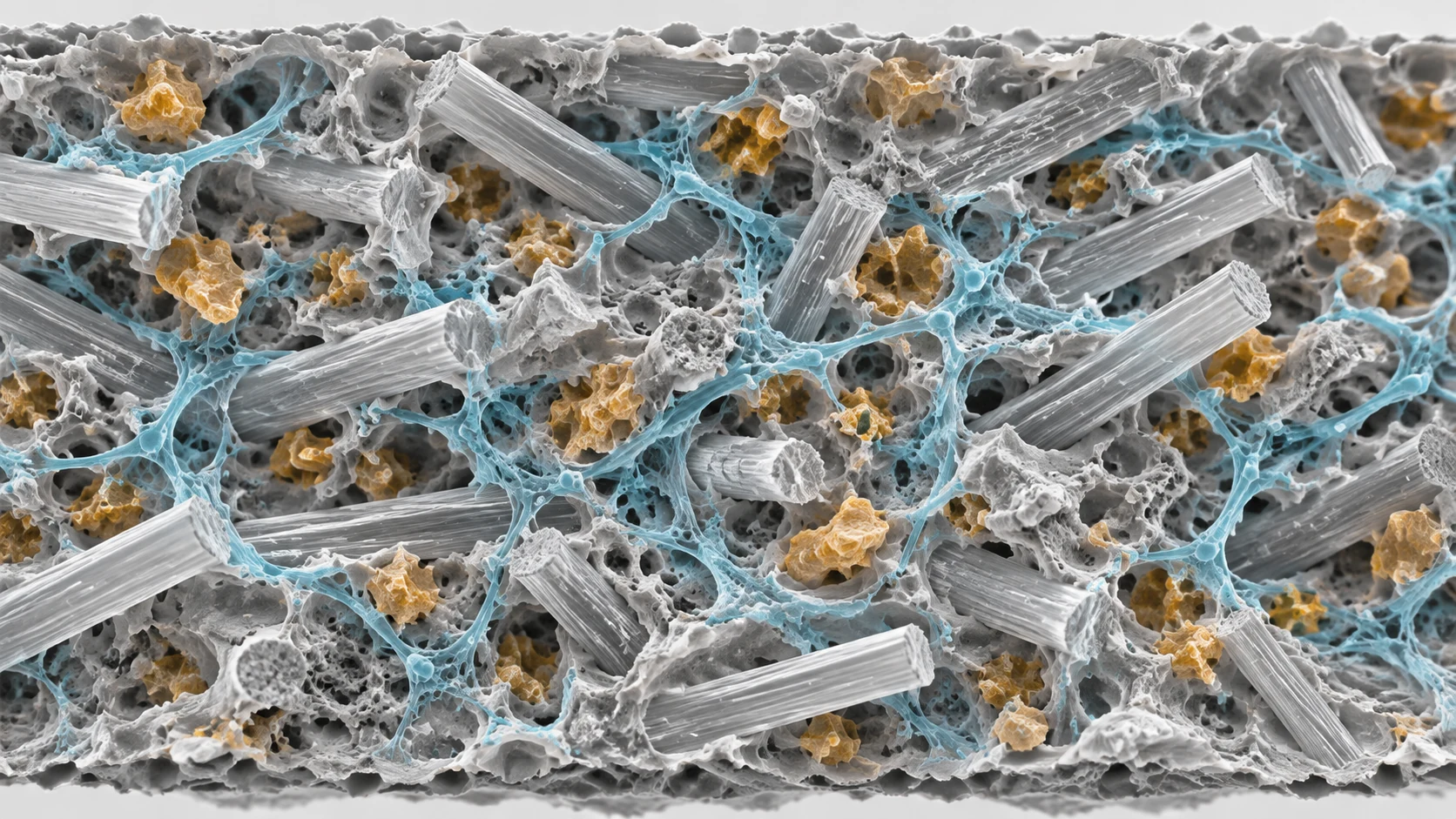

DGK-PA6 KJD789R-G30F uses a polymeric permanent-antistatic modification. The antistatic phase forms an alloy structure with PA6 and is distributed through the section of the molded part. Static dissipation therefore does not rely solely on replenishing a removable surface coating. Long-term use, wiping and humidity still need part-level validation, but the route is designed to avoid migration, blooming and rapid surface depletion.
4.2 Compatibility Between Flame Retardancy and Reinforcement
Flame-retardant PA6 itself is a formulation challenge. Sufficient flame-retardant chemistry is needed for a V0 target, but the additives can reduce mechanical properties and melt flow. DGK-PA6 KJD789R-G30F uses a flame-retardant and reinforcement compatibility route so that the flame-retardant phase and 30% glass fiber remain uniformly dispersed. The objective is to retain V0 performance, high strength and a usable injection-molding window in one formulation.
4.3 Color Customization Beyond Conductive Black

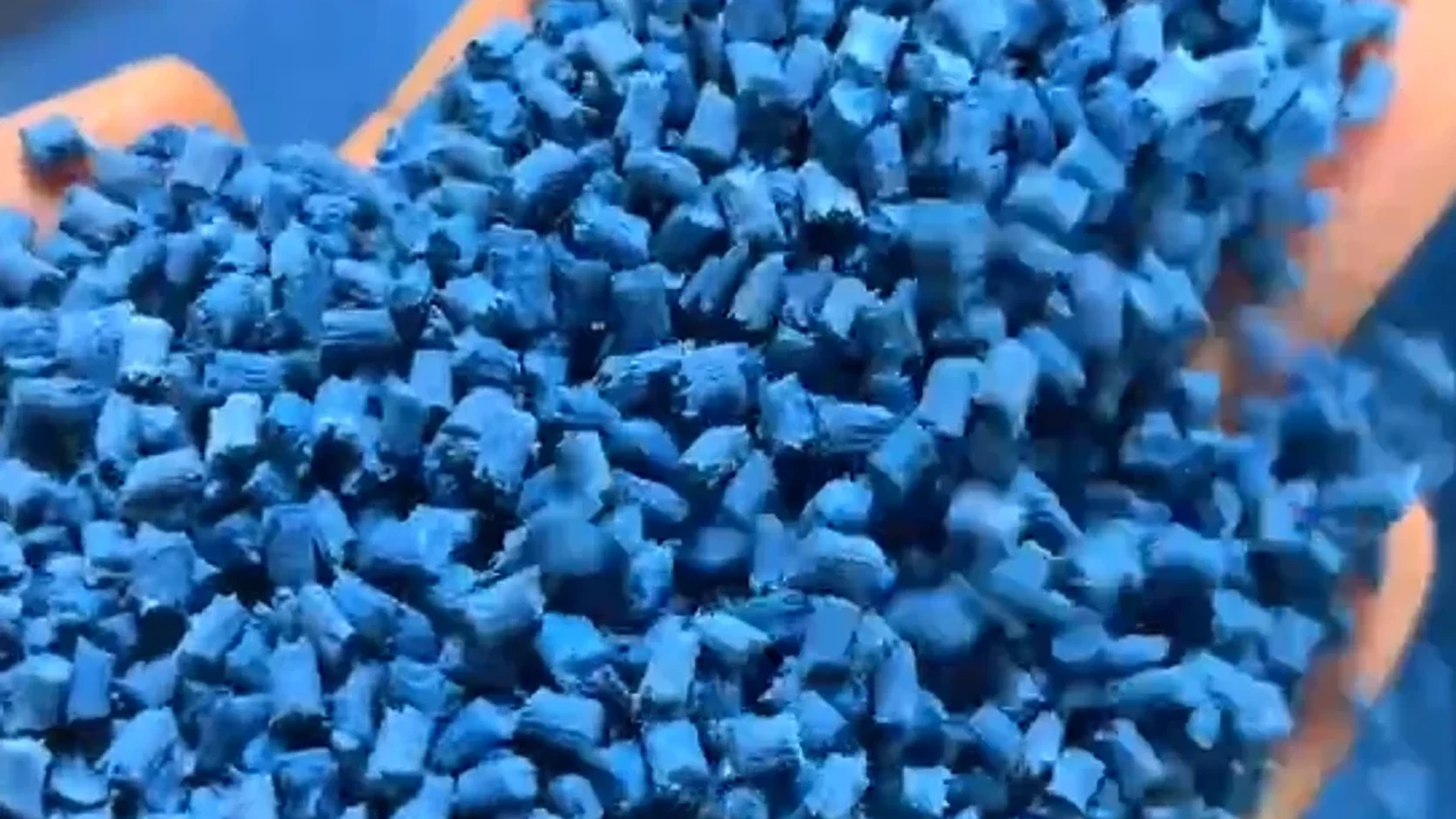

Conventional conductive plastics based on carbon black are effectively locked into black. This grade uses a non-carbon-black antistatic route, allowing a natural or light base to support color customization. DEYU can match RAL or PANTONE targets while keeping resistance, flame behavior and appearance inside the agreed specification. Each color formulation must still be revalidated because pigments and additive balance can shift electrical and flame results.
5. Engineering Case: Complete Conversion of an Industrial Inverter Enclosure
5.1 Customer Background and Initial Route
An industrial inverter manufacturer in East China produces about 500,000 units per year for fans, pumps, compressors and other industrial equipment. Its enclosure previously used a branded flame-retardant 30% glass-fiber-reinforced PA6 with a V-0 target, but the material had no antistatic function. After operation in dry workshops, especially below 30% relative humidity in winter, static charge accumulated on the housing and attracted dust around ventilation openings, contributing to repeated overheating alarms.
The customer tried an antistatic spray after injection molding. The coating was easily scratched during transport and installation and added another production step and cost.
5.2 Material Selection and Conversion
The requirement was to retain the existing flame-retardant target and 30% glass-fiber structural performance, add long-term static dissipation and preserve the RAL 7035 light-gray brand color. DEYU recommended DGK-PA6 KJD789R-G30F and prepared a RAL 7035 color formulation from the light base.
Before the trial, the technical team reviewed a 250-ton screw injection machine and a hot-runner three-plate mold. The enclosure had a maximum wall thickness of 3.2 mm and a minimum wall thickness of 1.8 mm, so drying, filling balance, fiber orientation and warpage were included in the trial plan.
5.3 Injection-Molding Starting Parameters
| Process parameter | Starting setting | Engineering purpose |
|---|---|---|
| Drying temperature | 130 C | Current product-page starting point for controlling PA6 moisture. |
| Drying time | 4-5 hours | Reduce hydrolysis, silver streaks, bubbles and strength loss. |
| Barrel / injection temperature | 235-245 C | Current TDS starting window; adjust by pressure, flow length and appearance. |
| Mold temperature | 90 C | Support PA6 crystallization, dimensional stability and surface consistency. |
| Injection pressure | Medium to high | Fill 1.8 mm thin sections, ribs and ventilation features. |
| Injection speed | Medium, staged where necessary | Limit fiber orientation, surface fiber exposure and warpage. |
5.4 Validation Data
Three consecutive production batches of 2,000 parts each were evaluated. The project report recorded surface resistance at 10^7-10^8 ohm/sq across the defined molded-part points, with a within-batch coefficient of variation below 18%. This is project-specific molded-part data and does not replace the current product-page batch table or the customer's agreed test method.
The project also reported UL94 V-0 at 1.6 mm, an average vertical-burning self-extinguishing time of 6.2 seconds and no flaming drips that ignited the cotton indicator. The supporting report and certification scope must be checked before this result is used as a formal compliance claim.
For mechanical validation, the enclosure showed no crack or fracture after one 1.5-meter drop on each of six faces, and the snap-fit structure survived 500 opening and closing cycles. The RAL 7035 formulation held Delta E below 1.0 against the standard color panel with no visible batch mismatch.
After 500 alcohol wipes, surface resistance changed by less than 0.5 order of magnitude and no visible deposit was reported. These results belong to the stated enclosure geometry, color formulation, conditioning and measurement plan.
5.5 Conversion Result
The customer listed DGK-PA6 KJD789R-G30F as the standard enclosure material and reported monthly use of about eight tonnes. Removing the antistatic spray reduced manufacturing cost per housing by about 12% and shortened the production cycle by 8%. Dust-attraction complaints in dry environments reportedly fell from 4.2% to below 0.3%. The figures should remain linked to the customer's signed project record rather than treated as universal guarantees.
6. Selection Advice and Engineering Controls
6.1 Selection Logic
When a project needs a V0 flame-retardant direction, static dissipation, high structural strength and color customization in a PA6 base, DGK-PA6 KJD789R-G30F is the directly relevant DEYU product route. The resistance range, V0 thickness, color and mechanical targets must be written into the sample approval plan.
If the enclosure has a brand-color standard, the light base can be matched to RAL or PANTONE targets. The resulting formulation must pass color, resistance and flame checks together rather than approving color alone.
For projects that accept V2 and place greater pressure on cost, DGK-PA6 KJD678R has been described as a project direction around 10^6-10^8 ohm, but it has no exact public product page. The current project TDS must be requested before evaluation. For continuous outdoor exposure, a UV-modified PA6 or ASA route should be assessed separately because antistatic and flame performance do not automatically provide weatherability.
6.2 Critical Injection-Molding Controls
Drying is the first control point. PA6 absorbs moisture, and insufficient drying can cause silver streaks, bubbles and hydrolytic loss of mechanical properties. Start from the product-page condition of 130 C for 4-5 hours and verify the dryer, dew point, residence time and actual material moisture.
Mold temperature should start around 90 C. PA6 is crystalline, and an excessively cold mold can increase internal stress, dimensional instability and poor surface reproduction. The final setting must balance crystallization, warpage and cycle time on the real enclosure.
Avoid excessive shear. A 30% glass-fiber system is sensitive to screw speed, back pressure and injection speed. Excessive shear shortens fibers and can reduce mechanical performance, while strong orientation and fiber exposure can worsen warpage and the appearance of colored surfaces.
7. Summary
The engineering value of DGK-PA6 KJD789R-G30F lies in four simultaneous functions: permanent antistatic performance combined with a V0 flame-retardant direction; 30% glass-fiber structural reinforcement combined with color customization; a non-migrating antistatic route combined with resistance durability; and material formulation combined with molding-process support.
The inverter enclosure project reported an eight-tonne monthly use, a 1.5-meter six-face drop result without cracking, 500 snap-fit cycles, Delta E below 1.0 and a reduction in dust-attraction complaints from 4.2% to below 0.3%. These results show a practical route from compound selection to production validation, while the current product TDS, required V0 thickness and final-part ESD test remain the formal basis for each new project.
