UV-Resistant PP Compound for Outdoor Clips, Covers and Industrial Parts
Polypropylene (PP) is one of the most widely used thermoplastics for outdoor components—clips, fasteners, protective covers, enclosures, and industrial parts. Its low density (0.90–0.91 g/cm³), excellent chemical resistance, and cost-effectiveness make it an attractive choice for applications ranging from automotive clips and cable management to agricultural covers and electrical housings.
Background / Problem
Polypropylene (PP) is one of the most widely used thermoplastics for outdoor components—clips, fasteners, protective covers, enclosures, and industrial parts. Its low density (0.90–0.91 g/cm³), excellent chemical resistance, and cost-effectiveness make it an attractive choice for applications ranging from automotive clips and cable management to agricultural covers and electrical housings.
Related DEYU Plastics material references for this selection topic: DGK-PP WPP-V0 halogen-free flame-retardant PP and DGK-PP 66D impact modified PP.
However, unmodified polypropylene has a critical weakness for outdoor use: poor inherent UV resistance. Without UV stabilization, PP can lose 50–70% of its tensile strength within months of direct sunlight exposure, leading to fading, chalking, embrittlement, and cracking. For a clip that must maintain retention force, or a cover that must protect sensitive equipment, this degradation is unacceptable.
The solution is a UV-resistant PP compound—a formulation that incorporates UV stabilizers (HALS and UV absorbers) and, in many cases, impact modifiers or mineral fillers to balance mechanical performance with outdoor durability. This article covers the key material options, performance data, and selection criteria for UV-resistant PP compounds used in outdoor clips, covers, and industrial parts.
Technical Difficulty / Why It Happens
The UV Degradation Mechanism in Polypropylene
PP degrades under UV exposure through photo-oxidation—a free-radical chain reaction initiated by UV photons:
| Stage | Process | Effect |
|---|---|---|
| Initiation | UV photons break weak bonds in the PP chain | Free radicals (R·) are generated |
| Propagation | R· + O₂ → ROO· (peroxy radical) | Chain reaction begins |
| Propagation | ROO· + RH → ROOH + R· | Chain scission; molecular weight drops |
| Branching | ROOH → RO· + ·OH | Hydroperoxide decomposition accelerates degradation |
| Surface manifestation | Photo-oxidation erodes the surface | Chalking, cracking, embrittlement, loss of impact |
The consequence for clips and covers:
Clips: Loss of retention force—the clip can no longer hold components securely
Covers: Surface cracking—moisture ingress, loss of protection
Industrial parts: Embrittlement—parts crack under load or impact
The Stabilizer Solution
UV-resistant PP compounds use a combination of stabilizer types:
| Stabilizer Type | Function | How It Works |
|---|---|---|
| HALS (Hindered Amine Light Stabilizers) | Radical scavenging | Neutralizes free radicals; regenerates during service |
| UV Absorbers (UVA) | Photon interception | Absorbs UV radiation and dissipates as heat |
| Antioxidants | Thermal protection | Prevents oxidation during processing and service |
The synergistic combination of HALS and UV absorbers provides comprehensive protection—the UV absorber intercepts photons before they reach the polymer, while HALS scavenges radicals that form despite the UV absorber.
DEYU Material Direction
DEYU typically recommends UV-resistant PP compounds based on the specific application requirements: mechanical properties, service life, and processing method.
DEYU Plastics' PP Compound Portfolio for Outdoor Applications
DGK-FR130UV — Flame-Retardant UV-Resistant PP
DGK-FR130UV is a high-impact, UV-stabilized polypropylene compound with V-0 flame retardancy. It combines 5–10 years of UV resistance with high stiffness and good impact strength.
| Property | DGK-FR130UV | Test Method |
|---|---|---|
| Density | 1.20 g/cm³ | GB 1033-96 |
| Tensile Strength | 28.2 MPa | GB 1040-92 |
| Flexural Strength | 53 MPa | GB 9341-88 |
| Notched Impact (Charpy) | 5.5 kJ/m² | GB 1043-93 |
| Heat Deflection Temperature (1.82MPa) | 120°C | GB 1634-88 |
| Flame Rating | V-0 | UL94 |
| UV Resistance | 5–10 years | — |
Applications: Telecom equipment housings, air conditioner outdoor covers, electrical enclosures, and outdoor components requiring flame retardancy.
DGK-T130UV — General-Purpose UV-Resistant PP
DGK-T130UV is a UV-stabilized PP grade suitable for both injection molding and extrusion. It offers good impact resistance, high stiffness, and 5–10 years of UV resistance.
| Property | DGK-T130UV | Test Method |
|---|---|---|
| Density | 0.905 g/cm³ | ISO 1183 |
| Melt Flow Rate (230°C/2.16kg) | 14 g/10min | ISO 1133 |
| Tensile Modulus | 1500 MPa | ISO 527-2 |
| Tensile Yield Strength | 26 MPa | ISO 527-2 |
| HDT (0.45MPa) | 110°C | ISO 75-2/B |
| Notched Impact (23°C) | 9 kJ/m² | ISO 179/1eU |
Applications: Communication equipment housings, air conditioner covers, electrical accessories.
RTP 154 HI UV — High-Impact UV-Resistant PP
RTP 154 HI UV is a high-impact, UV-stabilized PP compound designed for demanding outdoor applications.
| Property | RTP 154 HI UV | Test Method |
|---|---|---|
| Density | 0.91 g/cm³ | — |
| Tensile Strength | ~27 MPa | ASTM |
| Flexural Modulus | ~1300 MPa | ASTM |
| Notched Izod Impact | ~30 J/m | ASTM D256 |
| Melt Flow Index | 8 g/10min (230°C/2.16kg) | ASTM |
| HDT | ~110°C | ASTM |
Applications: Outdoor and UV-exposed components, automotive parts, consumer goods.
Formulation Approaches
DEYU typically offers two primary formulation routes for outdoor PP compounds:
| Formulation Type | Key Components | Best For |
|---|---|---|
| Unfilled UV PP | PP copolymer + HALS + UVA + antioxidants | Clips, fasteners, flexible parts requiring high impact |
| Talc-filled UV PP | PP + 20% talc + HALS + UVA + antioxidants | Covers, enclosures, rigid parts requiring stiffness and dimensional stability |
Talc-filled UV PP advantages:
Increased stiffness (flexural modulus 2800–3500 MPa)
Reduced warpage and shrinkage (up to 50% reduction)
Improved dimensional stability under thermal cycling
Lower cost than engineering plastics like ABS or nylon
Typical processing parameters for talc-filled UV PP:
Melt temperature: 190–230°C
Mold temperature: 40–60°C
Reference Product Data
The table below compares typical properties of UV-resistant PP compounds for outdoor clips, covers, and industrial parts.
| Property | DGK-FR130UV (FR) | DGK-T130UV (General) | RTP 154 HI UV (High Impact) | Talc-Filled UV PP |
|---|---|---|---|---|
| Base Resin | PP copolymer | PP | PP | PP + 20% talc |
| Modification Route | UV + FR V-0 + impact | UV + impact | UV + high impact | UV + talc reinforcement |
| Density (g/cm³) | 1.20 | 0.905 | 0.91 | 1.12–1.20 |
| MFR (230°C/2.16kg) | — | 14 g/10min | 8 g/10min | 8–25 g/10min |
| Tensile Strength (MPa) | 28.2 | 26 | 27 | 30–40 |
| Flexural Modulus (MPa) | — | 1500 | 1300 | 2800–3500 |
| Notched Impact (kJ/m²) | 5.5 | 9 (23°C) | ~2.5 (Izod J/m) | Balanced |
| HDT (°C) | 120 (1.82MPa) | 110 (0.45MPa) | ~110 | 110–130 |
| Flame Rating | V-0 | HB | HB | HB |
| UV Resistance | 5–10 years | 5–10 years | High | Good–Excellent |
| Typical Applications | FR enclosures, outdoor electrical | Housings, covers, accessories | Outdoor components, automotive | Rigid covers, enclosures, industrial parts |
| Processing | Injection molding | Injection molding/extrusion | Injection molding | Injection molding |
Data source: DEYU internal datasheets and industry literature; values are representative and may vary by specific grade and supplier.

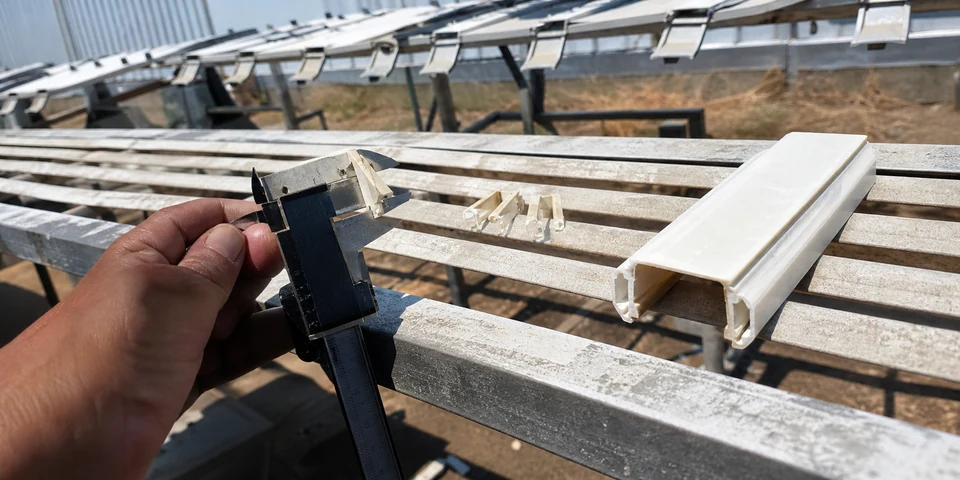

Customer Debugging / Validation Scenario
Scenario: Outdoor Cable Management Clip — UV Failure and Reformulation
Customer Profile: A manufacturer of telecommunications infrastructure producing injection-molded cable clips for outdoor base station installations. Clips must secure cables against wind and vibration for 5+ years in subtropical conditions.
Initial Problem: After 12–18 months of field exposure, the customer observed:
Loss of retention force: Clips no longer held cables securely
Surface cracking: Micro-cracks on clip surfaces
Brittleness: Clips cracked during maintenance handling
The material was a standard PP homopolymer with a single UV absorber (no HALS, no antioxidant).
Root Cause Analysis:
| Observation | Root Cause |
|---|---|
| Loss of retention force | Chain scission reduced molecular weight; the clip could not maintain its original shape under load |
| Surface cracking | Photo-oxidation eroded the surface; no HALS to scavenge radicals |
| Brittleness | Molecular weight reduction caused embrittlement; no antioxidant protection |
Corrective Actions:
| Issue | Corrective Action |
|---|---|
| Single UV absorber insufficient | Add HALS (0.3–0.5%) + UV absorber (0.2–0.3%) |
| No antioxidant protection | Add primary antioxidant (0.15–0.2%) + secondary antioxidant (0.05–0.1%) |
| Standard PP homopolymer | Switch to PP impact copolymer for better toughness |
Trial Results:
| Metric | Original Formulation | Corrected Formulation | Acceptance |
|---|---|---|---|
| Impact Retention (2000h QUV) | 45% | 88% | >80% |
| Tensile Retention (2000h QUV) | 52% | 91% | >85% |
| Surface Cracking | Present | None | None |
| Retention Force (after aging) | 55% of original | 92% of original | >85% |
| Field Pass Rate (24 months) | 72% | 99% | >97% |
Direction After Trial:
The customer transitioned to the corrected formulation with HALS + UVA + antioxidants. DEYU supported the transition by providing technical datasheets, processing recommendations, and small-batch validation material.
Note: This is a composite validation scenario based on common industry experiences. Specific results may vary by application, geographic location, and processing conditions.
Validation Data Table
| Component Type | Critical Test | Typical Acceptance | Test Method |
|---|---|---|---|
| Clips/Fasteners | Retention force after UV aging | >85% of original | Custom fixture |
| Clips/Fasteners | Impact retention after UV | >80% | ASTM D256 / ISO 180 |
| Covers/Enclosures | Color change (ΔE) after UV | <3.0 | ASTM D2244 |
| Covers/Enclosures | Tensile retention after UV | >85% | ASTM D638 / ISO 527 |
| Industrial Parts | Dimensional stability | <1.0% change | Dimensional measurement |
| All Components | Surface cracking | None | Visual (10x) |
| All Components | Field pass rate (24 months) | >97% | Field inspection |
Result Interpretation
Selecting the Right UV-Resistant PP Grade
| If Your Application Requires... | Recommended Grade |
|---|---|
| Flame retardancy + UV resistance | DGK-FR130UV or equivalent V-0 UV PP |
| High impact + UV resistance | RTP 154 HI UV or impact-modified UV PP |
| Stiffness + dimensional stability | Talc-filled UV PP (20% talc) |
| General-purpose outdoor parts | DGK-T130UV or standard UV PP |
| Extrusion (profiles, sheets) | UV PP extrusion grade |
Common Failure Modes and Solutions
| Failure Mode | Likely Cause | Corrective Action |
|---|---|---|
| Loss of retention force | Chain scission; insufficient HALS | Increase HALS loading; use high-MW HALS |
| Surface cracking | Inadequate UV absorber | Increase UVA loading; add surface protection |
| Brittleness | No antioxidant protection | Add primary + secondary antioxidants |
| Warpage | No filler; high shrinkage | Add talc or glass fiber; adjust processing |
| Color fading | Insufficient pigment protection | Increase UVA; use inorganic pigments |
Suitable Applications
| Application | Recommended Grade | Key Requirement |
|---|---|---|
| Cable management clips | Impact-modified UV PP | Retention force, flexibility |
| Telecom enclosure covers | DGK-FR130UV or talc-filled UV PP | UV resistance, flame retardancy |
| Agricultural equipment covers | Talc-filled UV PP | UV resistance, stiffness |
| Automotive exterior clips | Impact-modified UV PP | UV resistance, impact retention |
| Industrial machine covers | DGK-FR130UV or talc-filled UV PP | UV resistance, dimensional stability |
| Outdoor electrical housings | DGK-FR130UV (V-0) | UV resistance, flame retardancy |
| Solar panel clips/fasteners | Impact-modified UV PP | UV resistance, retention force |
What Buyers Should Provide
To enable accurate material selection, buyers should provide the following information:
Part Information
Part function (clip, cover, enclosure, industrial part)
Part geometry and critical dimensions
Required service life (years)
Environmental Conditions
Geographic location(s) and climate zone
UV exposure (direct sunlight hours per day, orientation)
Temperature range (minimum and maximum)
Humidity and precipitation
Chemical exposure (road salts, agrochemicals)
Performance Requirements
Target mechanical properties (tensile, impact, flexural modulus)
Retention force requirements (for clips)
Color and appearance requirements
Regulatory requirements (UL94, automotive specifications)
Processing Information
Processing method (injection molding, extrusion)
Molding machine specs or extrusion line configuration
Annual production volume
Validation Requirements
Testing standards required
Acceptance criteria
Timeline for qualification
DEYU can support material selection by providing technical datasheets, small-batch validation quantities, processing guidance, and formulation recommendations based on specific application requirements and environmental conditions.
Conclusion
UV-resistant PP compounds offer a cost-effective solution for outdoor clips, covers, and industrial parts that must survive years of sun exposure without degradation. The key to success is selecting the right formulation—one that combines appropriate UV stabilizers (HALS + UVA), antioxidants, and, where needed, impact modifiers or mineral fillers.
Key takeaways:
| Factor | Recommendation |
|---|---|
| Stabilizer package | HALS + UV absorber + primary/secondary antioxidants |
| UV resistance target | 5–10 years for most outdoor applications |
| Talc filling | 20% talc for stiffness and dimensional stability |
| Flame retardancy | V-0 grades for electrical enclosures |
| Impact modification | PP copolymer or impact modifier for clips |
| Validation | Test retention force, impact, and color after UV exposure |
The practical selection path:
Define the part function — clip, cover, or industrial part
Identify the critical failure mode — retention loss, cracking, or embrittlement
Select the PP base — homopolymer for stiffness; copolymer for impact
Choose the stabilizer package — HALS + UVA + antioxidants
Add fillers if needed — talc for stiffness; glass fiber for strength
Validate with appropriate testing — UV, mechanical, and field exposure
DEYU can support UV-resistant PP selection and validation—from material recommendation to small-batch validation to production-scale supply—ensuring that outdoor PP parts deliver the durability and reliability that applications demand.
