Antistatic MPPO Solution for Precision IC Trays: DGK-PPO DD6-9A
Precision semiconductor trays must hold every chip in position, dissipate charge without a sudden current path, survive a 125°C moisture-removal bake and remain flat enough for automated handling. DGK-PPO DD6-9A uses a low-loading carbon-nanotube network in MPPO to balance these requirements without the dusting and orientation problems of traditional fillers.
Buyer and engineer FAQ
Questions engineers often ask about this material route
What surface-resistance range should an IC tray use?
The project target is 10⁶–10⁹ Ω/sq, within the static-dissipative range. It releases charge in a controlled way without creating the fast current path associated with a highly conductive part. Test multiple molded locations, not only a pellet or plaque.
Can DGK-PPO DD6-9A withstand a 125°C bake?
Its typical heat-deflection temperature is at least 140°C, and the intended tray process includes 125°C/24 h baking validation. Final approval still uses the actual tray geometry, load, stacking condition and measured flatness.
How is tray warpage controlled?
Use the low-shrinkage MPPO route, dry correctly, keep the mold at or above 120°C, and use balanced multi-point gates. The material and molding process must be validated together after the 125°C/24 h bake.
How does the CNT route differ from carbon black and carbon fiber?
CNTs form an efficient network at much lower loading. This reduces dusting, blooming and filler-driven shrinkage imbalance. Carbon black normally needs about 30%, while carbon fiber around 15% can orient with melt flow and create anisotropic warpage.
From wafer singulation through packaging, test and final board placement, a chip can pass through dozens of pick-and-place operations. At every transfer, the IC tray provides repeatable positioning, mechanical protection and electrostatic control. It is therefore a process carrier, not disposable packaging.
1. IC trays in semiconductor packaging and test
IC trays are dedicated containers used by semiconductor assembly and test operations. Their functions are to prevent damaging electrostatic contact, protect packages from impact, and support automated inspection and placement. JEDEC tray designs define pocket matrices for chips from 3 × 3 mm to 22 × 22 mm. A common standard outline is 322.6 × 135.9 × 7.6 mm.
The same carrier concept covers BGA, QFN, QFP, PGA, TQFP, LQFP, SoC, SiP, TSOP and PLCC packages. Pocket position, coplanarity and resistance uniformity must remain predictable across the tray because automation sees the entire molded part, not an isolated material specimen.
Modified polyphenylene oxide—MPPO, also called MPPE—is used for more than 90% of IC-tray material applications cited in the source data. The material is selected for its combined mechanical behavior, electrical performance, heat resistance, low moisture uptake and dimensional stability.
2. Why PPO became the main IC-tray base resin
Dimensional stability is the first reason. MPPO molding shrinkage is normally held at 0.3%–0.5%, supporting consistent pocket geometry and low repeated-use deformation. Carbon-fiber nylon and carbon-fiber PET are crystalline systems whose directional crystallization and reinforcement can make tray edges more prone to warpage.
Heat resistance is the second reason. BGA and QFN packages are commonly dried at 125°C before reflow to prevent moisture-driven package cracking, often called the popcorn effect. Customer specifications can require a heat-deflection temperature of 130–160°C and less than 1 mm deformation after 24 hours. PPO starts near a 140°C heat capability; modified MPPO can exceed 140°C, and some high-end systems reach 160–170°C.
Static dissipation is the third requirement. ANSI/ESD S20.20 defines a broad dissipative packaging context from 10⁴ to 10¹¹ Ω, while this tray program controls surface resistance to 10⁶–10⁹ Ω/sq. This range bleeds charge gradually; an out-of-range tray can attract dust, damage chip circuitry or create latent failure.
Low moisture absorption completes the selection logic. PPO absorbs little water, so a molded tray is less likely to swell or lose geometry in humid storage and production environments.
3. Limits of traditional carbon black and carbon fiber

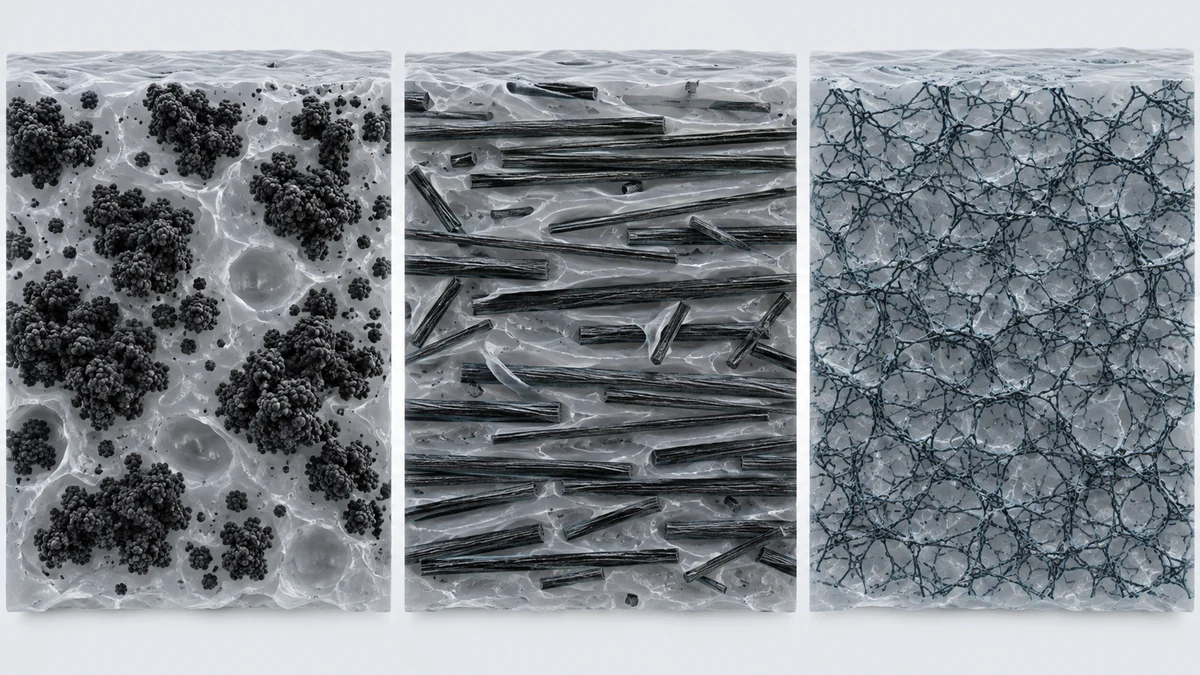

A conventional carbon-black route can reach the electrical target at relatively low raw-material cost, but approximately 30% carbon black may be needed. Such loading increases dusting and the risk of particles, oily residue or other migrated matter reaching a chip in the cleanroom.

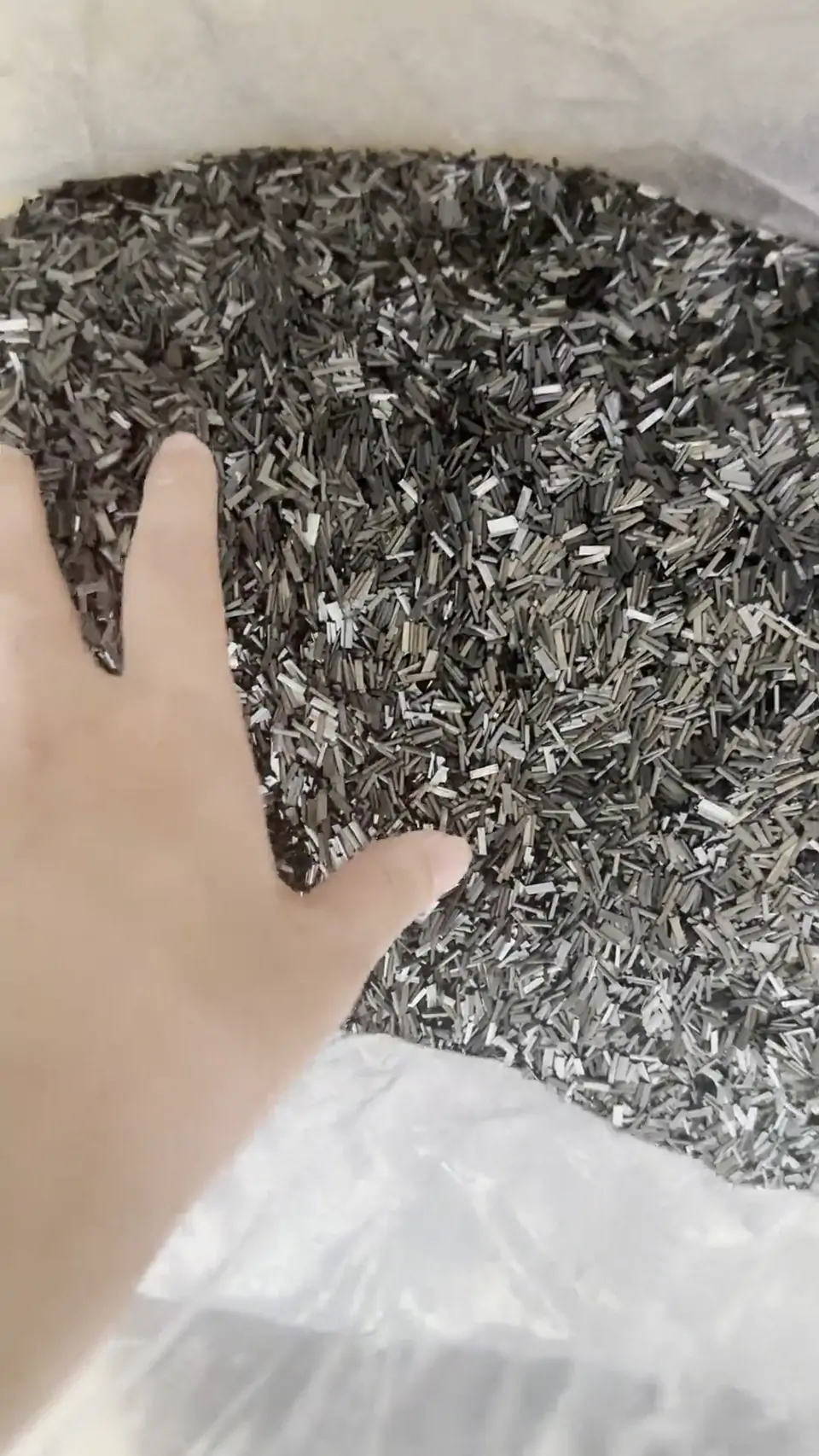

Carbon fiber reinforces PPO but is usually used near 15%, faces supply constraints and can appear as floating fiber at the molded surface. More importantly, fibers align with melt flow. Different shrinkage along and across that orientation creates internal stress, asymmetric contraction and tray warpage during cooling or later baking.
Both routes are highly sensitive to dispersion. If the conductive phase is uneven, different locations on one tray can differ by more than one order of magnitude. IC trays require a controlled electrical map over the whole part and reproducible batches.
4. DGK-PPO DD6-9A: a low-loading CNT route

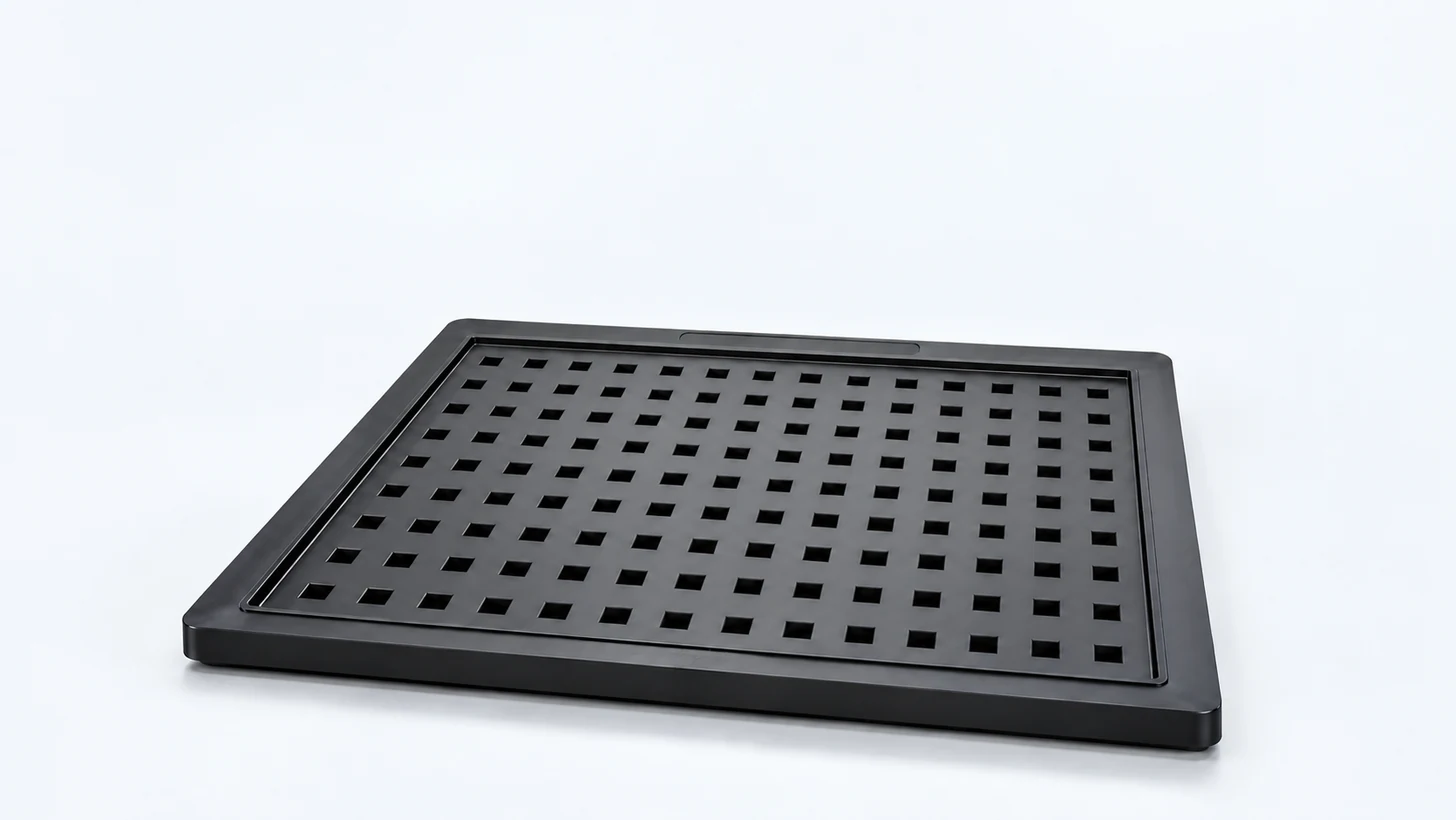

DEYU developed DGK-PPO DD6-9A for semiconductor IC trays, wafer carriers and other precision electronic transport fixtures. Carbon nanotubes build a connected network at far lower loading than carbon black, stabilizing the 10⁶–10⁹ Ω/sq range while retaining more of the MPPO matrix's dimensional behavior.
Lower loading means less filler available to migrate, bloom or shed. The formulation is designed for low VOC and no precipitation at the surface, reducing cleanroom contamination risk and avoiding the fiber-orientation mechanism that distorts carbon-fiber trays.
Typical property data
| Property | DGK-PPO DD6-9A typical value | Test standard | Meaning for IC trays |
|---|---|---|---|
| Surface resistance | 10⁶–10⁹ Ω/sq | ANSI/ESD S20.20 | Static-dissipative range; protects chips |
| Heat-deflection temperature | ≥140°C | ASTM D648 | Supports 125°C moisture-removal bake |
| Molding shrinkage | 0.3%–0.5% | ASTM D955 | Dimensional consistency and low warpage |
| Density | Approx. 1.10 g/cm³ | ASTM D792 | Lightweight tray construction |
| Flammability | HB at 1.6 mm | UL 94 | Basic flame-behavior reference |
| Cleanliness | Low VOC, no blooming | Cleanroom requirement | Avoids chip contamination |
These are material-direction values. The 10⁶–10⁹ Ω/sq resistance window, ≥140°C HDT and 0.3%–0.5% shrinkage must be confirmed on the customer's molded tray with its wall thickness, gate design, conditioning and electrode method.
Comparison with conventional solutions
| Comparison | Carbon-black MPPO | Carbon-fiber MPPO | DGK-PPO DD6-9A (CNT) |
|---|---|---|---|
| Conductive filler loading | Approx. 30% | Approx. 15% | Low loading |
| Surface resistance | 10⁶–10⁹ Ω | 10⁶–10⁹ Ω | 10⁶–10⁹ Ω |
| Dusting / blooming risk | High: carbon-black shedding | Medium: fiber float and orientation | Very low: low loading, no migration |
| Warpage risk | Medium | High: anisotropic shrinkage | Low: narrow shrinkage, good isotropy |
| Surface finish | Average | Poorer because of fiber float | Good |
| Batch consistency | Poor when dispersion varies | Medium | Good with uniform CNT dispersion |
| Cleanroom suitability | Poor | Medium | Good |
5. Injection-molding requirements
MPPO processing differs materially from ABS or PP. Dry at 90–120°C for 2–4 hours before molding; some high-end materials may need as long as 24 hours. Residual moisture can cause silver streaks or bubbles and can disturb the apparent uniformity of the conductive network.
Use a 270–310°C barrel profile and a 280–300°C nozzle as starting windows. Too little heat leaves a high-viscosity melt and incomplete filling; excessive residence time or temperatures above the window can cause degradation and electrical drift.
A mold temperature of at least 120°C is the baseline for flat trays. A cold mold freezes the skin too early and locks in stress that is released during the 125°C bake. Slow, balanced cooling at ≥120°C gives chains time to relax. Multi-point uniform gates are preferred over a single unbalanced flow path.
| Process parameter | Recommended value | Purpose |
|---|---|---|
| Drying temperature | 90–120°C | Hot-air or desiccant drying |
| Drying time | 2–4 h | Some high-end grades require longer |
| Barrel temperature | 270–310°C | Fine-tune for machine and mold |
| Nozzle temperature | 280–300°C | Maintain flow into the cavity |
| Mold temperature | ≥120°C | Reduce residual stress and warpage |
| Injection pressure | Medium to high | Ensure complete filling |
| Injection speed | Medium | Avoid excessive shear heating |
Use a screw injection machine with L/D above 15:1 and compression ratio 2.5–3.5, accurate heating and zone control. Before a material change, purge the screw and barrel thoroughly with neat PP or PE to prevent cross-contamination.
6. Customer validation case 1: QFN trays in East China
A QFN assembly-and-test company producing about 200 million devices per year had used imported carbon-fiber MPPO. Floating fibers reduced surface quality and automated vision recognition. Resistance varied by more than one order of magnitude—from 10⁷ to 10⁹ Ω—and some trays exceeded the 10⁹ Ω limit. Imported material also required 10–12 weeks of lead time.
The customer's screw machine had an 18:1 L/D ratio, but the mold was set to 100°C. DEYU raised the mold to 125°C and set the barrel to 285–305°C. The customer's engineering team then tested nine positions in a 3 × 3 matrix on ten trays per batch, following ANSI/ESD S20.20, across three consecutive 500-tray batches.
All 1,500 trays measured 10⁷–10⁹ Ω at every point. Within-batch coefficient of variation was below 15%, versus more than 40% for the imported material. Vision recognition rose from 92% to 99.5%, floating fiber disappeared, and flatness after 125°C/24 h baking was ≤0.8 mm. The grade became the specified QFN tray material at about 5 tonnes per month, reducing imported-material purchasing by 70%.
7. Customer validation case 2: BGA tray warpage in South China
A BGA tray producer serving domestic and international OSAT customers saw some carbon-fiber MPPO trays exceed 1.2 mm flatness after 125°C/24 h, against a ≤1.0 mm requirement. Scrap was about 12%. The mold ran at only 105°C, and carbon-fiber orientation created 0.12% shrinkage along the long edge versus 0.08% along the short edge—a 0.04 percentage-point difference.
After switching to DGK-PPO DD6-9A, the mold was raised from 105°C to 125°C and the gates were revised for balanced multi-point filling. Because the CNT route does not depend on long carbon fibers, it removes the principal source of orientation-driven anisotropic shrinkage.
Three consecutive 800-tray batches—2,400 trays total—were produced. Flatness after 125°C/24 h measured 0.5–0.8 mm, every tray met the ≤1.0 mm limit, scrap fell from 12% to below 0.5%, and every measured resistance point remained within 10⁷–10⁹ Ω. The material was extended to all BGA tray lines at about 8 tonnes per month.
8. Selection and troubleshooting
For wafer-level and advanced packaging where cleanliness is critical, the low-loading CNT route minimizes dusting and precipitation. For trays requiring ≤1.0 mm deformation after 125°C/24 h, combine low-shrinkage isotropic MPPO with a mold at ≥120°C. A carbon-black route may be evaluated only when cost dominates and the project accepts higher cleanliness and consistency risk.
| Observed issue | Likely causes | Corrective checks | Verification |
|---|---|---|---|
| Warpage after baking >1.0 mm | Low mold temperature, poor gate layout, excessive material shrinkage | Raise mold to ≥120°C; verify balanced multi-point filling and shrinkage | Measure flatness after 125°C/24 h |
| Surface resistance above 10⁹ Ω | Insufficient drying, barrel above 310°C, damaged CNT network | Confirm 90–120°C/2–4 h drying and every barrel zone | Point-by-point test per ANSI/ESD S20.20 |
| Poor finish or floating fibers | Inherent carbon-fiber surface issue | Change to CNT-modified DGK-PPO DD6-9A | Visual inspection plus 200× magnification |
| Large resistance variation between batches | Uneven filler dispersion or process fluctuation | Check blending uniformity and temperature stability | Ten trays per batch, nine points per tray; calculate CV |
9. Engineering summary
DGK-PPO DD6-9A addresses three linked tray failures. First, a low-loading CNT network provides stable 10⁶–10⁹ Ω/sq resistance while avoiding the approximately 30% carbon-black dusting route and carbon-fiber surface float. Second, 0.3%–0.5% shrinkage and improved isotropy support ≤1.0 mm flatness after a properly molded tray is baked at 125°C/24 h. Third, batch performance is supported by production evidence: 1,500 QFN trays at CV <15% and 2,400 BGA trays with scrap reduced from 12% to below 0.5%.
The two applications cover both imported-material replacement—5 tonnes per month and 70% lower imported purchase—and warpage elimination at roughly 8 tonnes per month. They show the required engineering chain: material formulation, drying, hot mold, balanced filling, point-by-point resistance testing and baked-part dimensional release.
